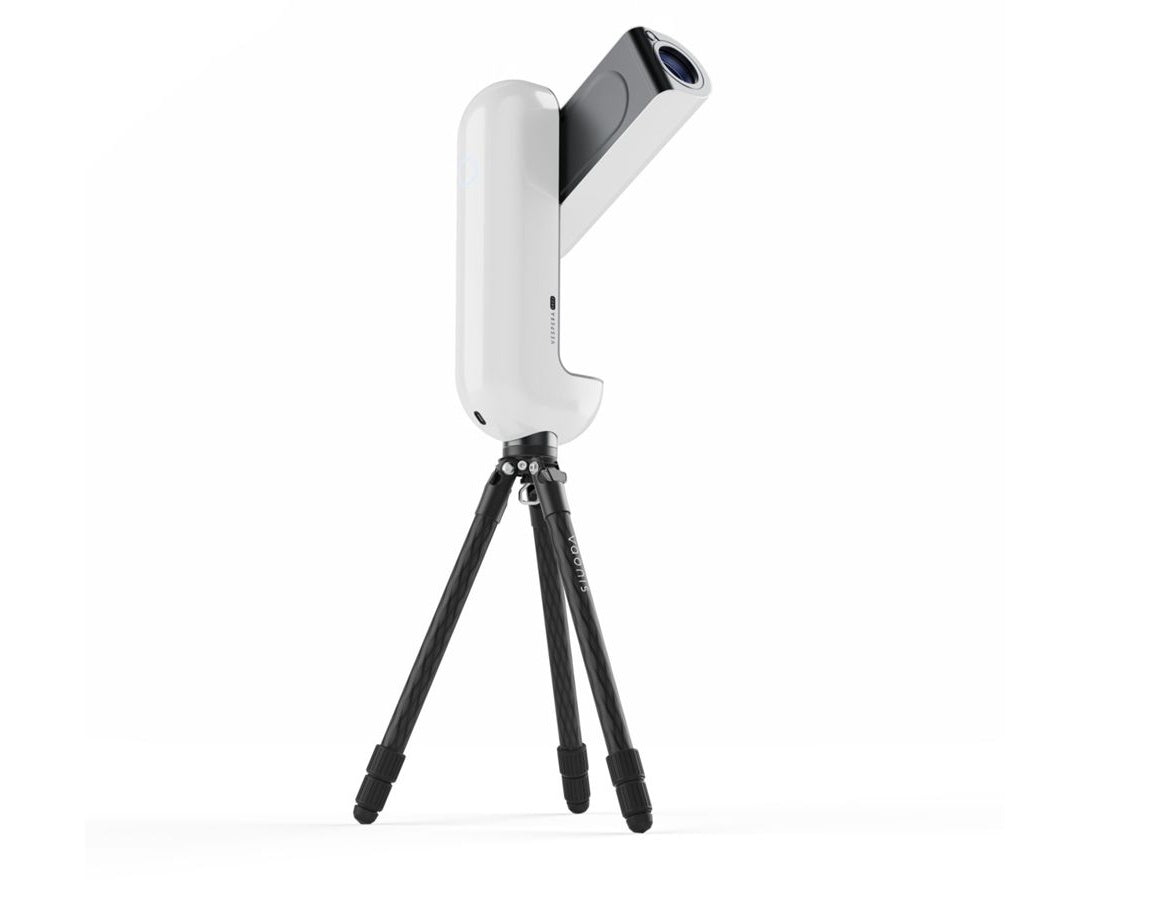

Vaonis Vespera Pro 2 Observation Station

High-quality deep-sky astrophotography normally requires precise coordination of mount, tracking, cabling and software. An integrated smart telescope with a fixed optical and sensor combination reduces this complexity significantly. The goal of the Vespera Pro 2 is a consistent, reproducible workflow from image capture to further processing of the image data.

Fixed optics for predictable results
The apochromatic short-focus refractor is designed for large deep-sky objects. With a 50 mm aperture, 245 mm focal length and an integrated field corrector, the optical system delivers even image quality across the entire field. Lanthanum glass (S-FPL52) is used to reduce chromatic aberrations. The fixed tuning of optics and sensor prevents incorrect combinations of individual components.

Sensor integration instead of camera replacement
The built-in Sony IMX 676 colour sensor works with 12.5 megapixels in a square 1:1 format (3536 × 3536 pixels). This sensor format is particularly suitable for mosaic images and wide nebula regions. The pixel size of 2 µm corresponds to a theoretical image scale of around 1.6 arcseconds per pixel, depending on atmospheric conditions and post-processing. Single exposures can be saved as 16-bit FITS, stacked images as 16-bit TIFF.

Manual control without black-box logic
Exposure time, gain and image framing can be set manually within the system. In addition, calibration frames can be recorded. Image processing is automated, but raw data remains available and can be processed externally. This allows the system to be integrated into existing workflows with software such as PixInsight, Siril, AstroPixelProcessor or Photoshop.

Mosaic imaging over multiple nights
The integrated mosaic mode (CovalENS) allows the field of view to be extended beyond the native field and can reach total resolutions of up to 50 megapixels depending on the project. Multi-night projects can be continued, with framing, stacking progress and settings retained. Optical stray light shields reduce unwanted light and improve contrast, especially under light-polluted conditions. The integrated power supply allows observation and imaging sessions of up to 11 hours.

Features:

• Fixed-configured apochromatic refractor for deep-sky astrophotography
• 50 mm aperture and 245 mm focal length, optimised for wide nebula and star fields
• Sony IMX 676 colour sensor with 12.5 megapixels in a square format
• 2 µm pixel size for high detail in widefield targets
• Manual adjustment of exposure time, gain and image framing within the system
• Storage of single frames as 16-bit FITS, stacked images as 16-bit TIFF
• Mosaic mode (CovalENS) with project-dependent expansion up to 50 MP
• Automatic continuation of multi-night mosaics
• Optical stray light shielding for improved contrast
• Integrated anti-dew system with humidity and temperature sensor
• Internal storage with 225 GB for extensive projects
• Total system weight: approx. 5 kg
