£1,199.00
£1,199.00
Vendor: Lilliput
SKU: LILLIPUTQ17
Availability: In stock

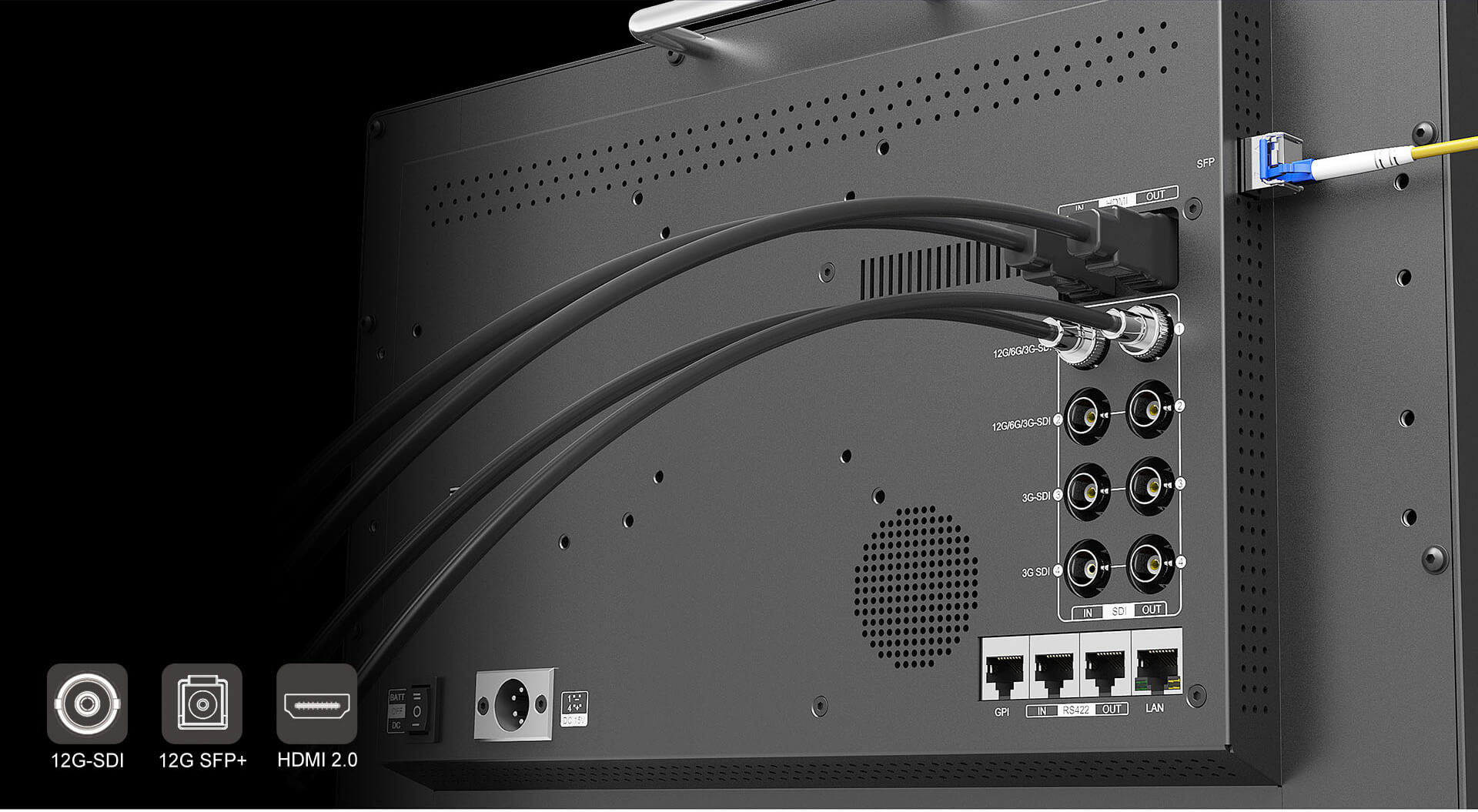

Equipped with 12G-SDI, 3G-SDI and HDMI 2.0 input/output interfaces, it can support up to 4096×2160(60p, 50p, 30p, 25p, 24p)& 3840×2160 (60p, 50p, 30p, 25p, 24p)signal. 12G SFP+interface, which allows to transmit 12G-SDI signal via SFP optical module, is suitable for most broadcast field. The colour calibration of Q17 model are including colour spaces(SMPTE_C, Rec709 and EBU) and colour temperature(3200K, 5500K, 6500K, 7500K,9300K) and gammas (value from 1.8 to2.8). It can support remote control application. To connect your computer to control the monitor via applications. The interfaces of RS422 in and RS422 out can realise synchronisation control of multiple monitors like picture, source, marker, audio, function, UMD. It can support Audio Vector, HDR and 3DLUT function.

Key Specs:

  • Model: Q17
  • Display: 17.3 inch, 1920×1080, 300nits
  • Input: 2×12G-SDI, 2×3G-SDI, 12G SFP, HDMI 2.0
  • Output: 2×12G-SDI, 2×3G-SDI, HDMI 2.0
  • Control interfaces: LAN in, GPI in, RS422 In & out
  • Feature: 3D-LUT, HDR, Remote terminal

840ef23e2

aa9b8a44252e9658a91b4073125d622d7f1165e3715141063274171a5cfa714b13620214e3380f21c578a24a1

Specifications:

Display
Size 17.3
Resolution 1920 x 1080
Brightness 300cd/m²
Aspect ratio 16:9
Viewing Angle 170°/170°(H/V)
Contrast 1200:1
Anamorphic de-squeeze 2x, 1.5x, 1.33x
HDR ST2084 300/1000/10000/HLG
Supported Log formats Sony SLog / SLog2 / SLog3
Look up table (LUT) support 3D LUT (.cube format)
Technology Calibration to Rec.709 with optional calibration unit
Video Input
SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI 1×HDMI 2.0
Video Loop Output (Uncompressed true 10-bit or 8-bit 422)
SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI 1×HDMI 2.0
Supported In / Out Formats
SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
Audio In/Out (48kHz PCM Audio)
SDI 12ch 48kHz 24-bit
HDMI 2ch 24-bit
Ear Jack 3.5mm  2ch 48kHz 24-bit
Built-in Speakers 2
Remote Control
RS422 In / out
GPI 1
LAN 1
Power
Operating power 32W
DC In DC 12-24V
Compatible batteries V-Lock or Anton Bauer Mount
Input voltage (battery) 14.4V nominal
Environment
Operating Temperature 0~50
Storage Temperature -20~60
Other
Dimension(LWD) 434×263×54mm
Weight 3.2kg
