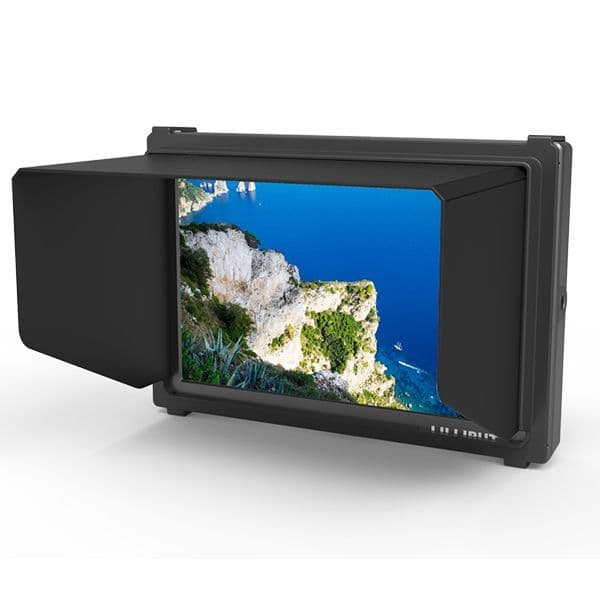

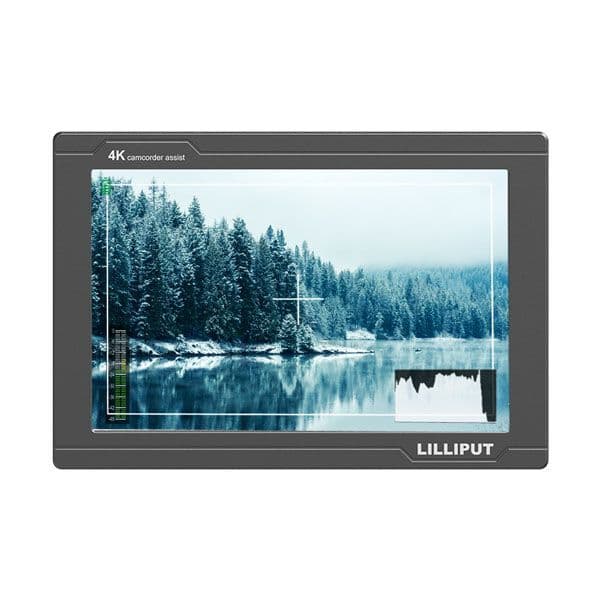

Lilliput FS7 - 7" 4K HDMI / SDI Input Monitor

Key Specs:

  • Model: FS7
  • Physical resolution:1920×1200
  • Input:1×3G-SDI, 1×HDMI 1.4
  • Output:1×3G-SDI, 1×HDMI 1.4
  • Feature: Metal housing

For the advanced camera auxiliary functions, such like peaking filter, audio lever meter and others, all are under professional equipment or software testing and calibration, parameters accurate, and comply with industrial standards. Aluminium housing design, which effectively improves monitor durability. This is so-called a better camera assist.

66c6a011

da15fbb75b07065ee28ce3e1fd0412ba1

Specifications:

Display
Size 7
Resolution 1920 x 1200
Brightness 500cd/m²
Aspect ratio 16:10
Contrast 1000:1
Viewing Angle 170°/170°(H/V)
Video Input
SDI 1×3G
HDMI 1×HDMI 1.4
Video Loop Output
SDI 1×3G
HDMI 1×HDMI 1.4
Supported In / Out Formats
SDI 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60
HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/602160p 24/25/30
Audio In/Out (48kHz PCM Audio)
SDI 12ch 48kHz 24-bit
HDMI 2ch 24-bit
Ear Jack 3.5mm  2ch 48kHz 24-bit
Built-in Speakers 1
Power
Operating power 12W
DC In DC 7-24V

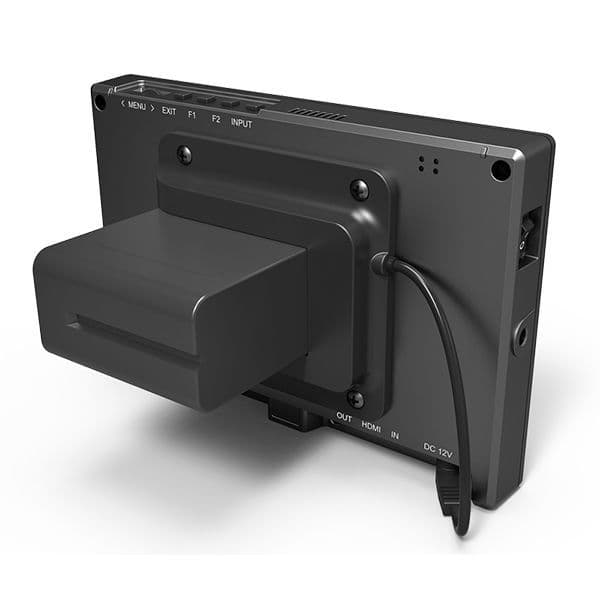

Compatible batteries NP-F Series
Input voltage (battery) 7.2V nominal
Environment
Operating Temperature 0~50
Storage Temperature -20~60
Other

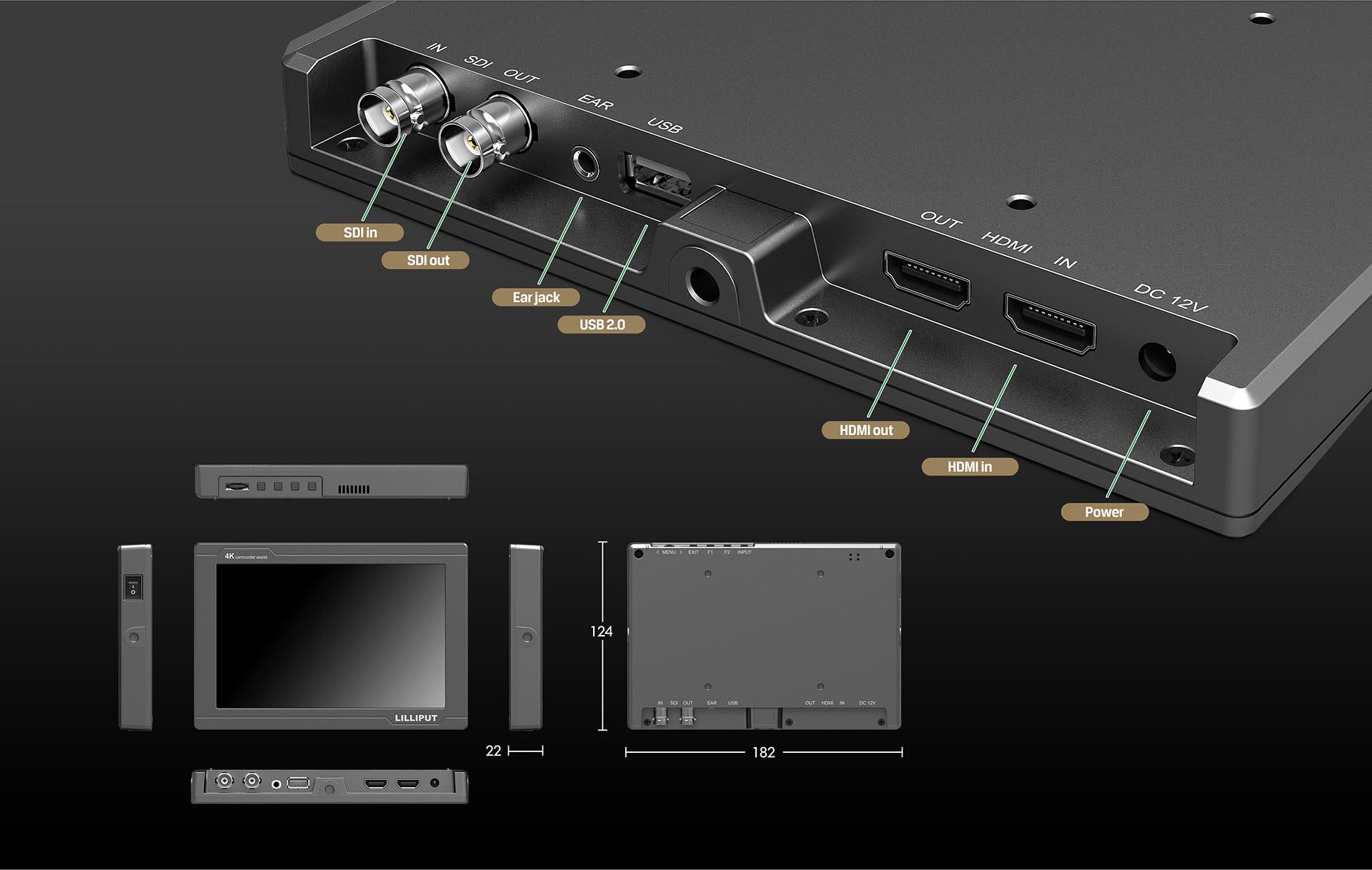

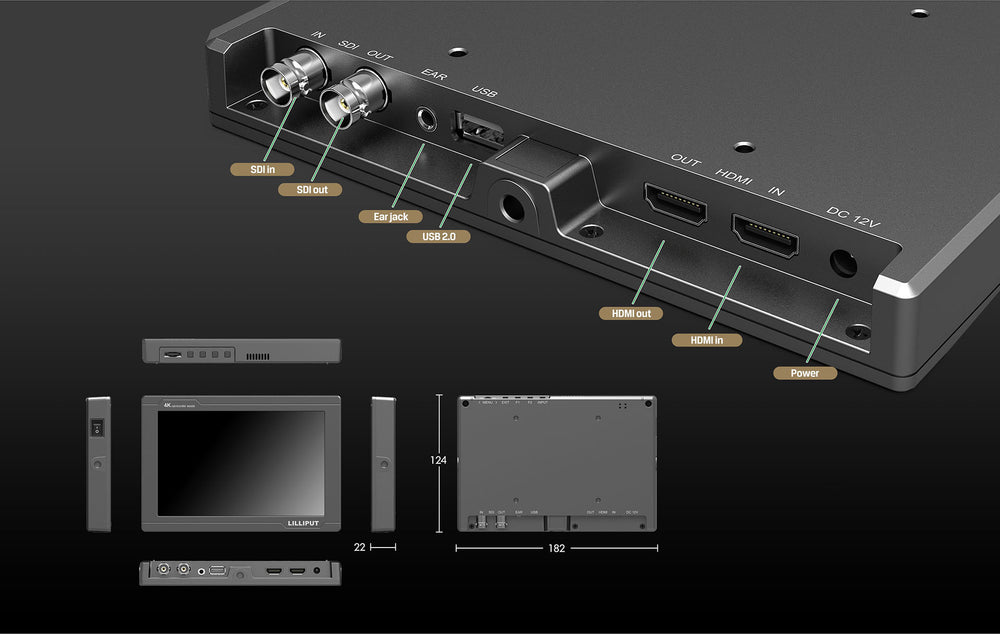

Dimension(LWD) 182×124×22mm
Weight 405g

Accessories:
