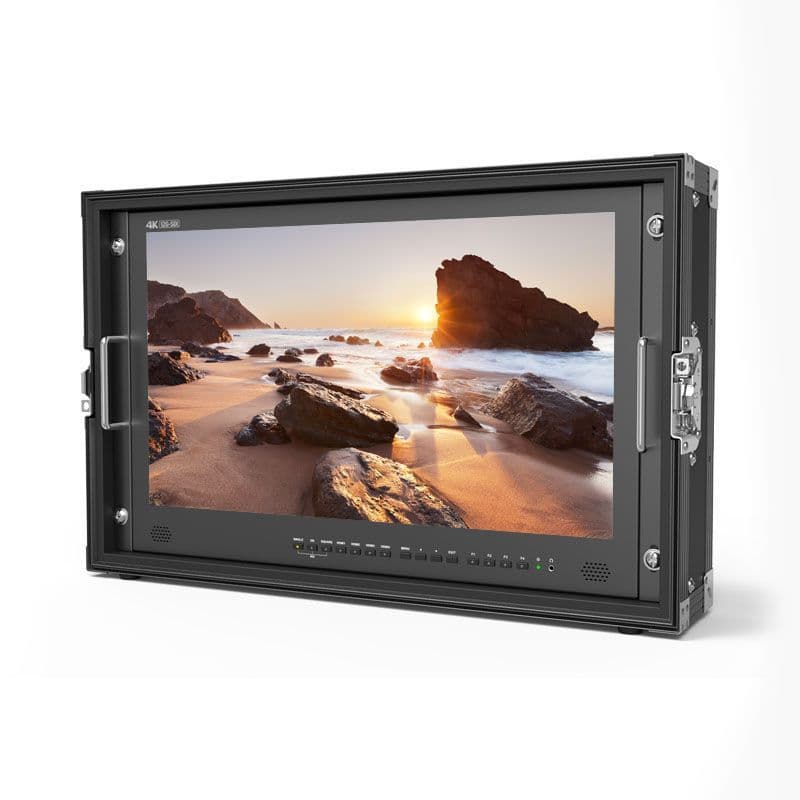

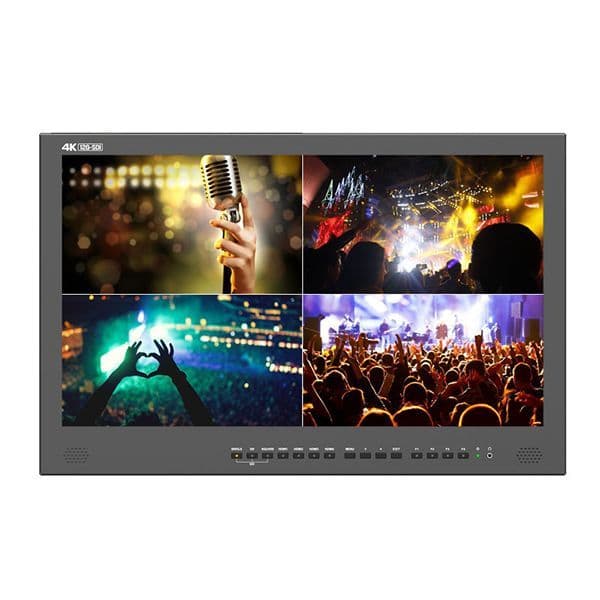

Also supports Quad views splitting from different input signals simultaneously, which providing a efficient solution for applications in muliti-camera monitoring. About the install way for 12G SDI production monitor ,there are ,stand-alone and carry-on for your selection , and it widely applied in studio, filming, live events and other various applications.
Specifications:
| Display | |
| Size | 23.8 |
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 178°/178°(H/V) |

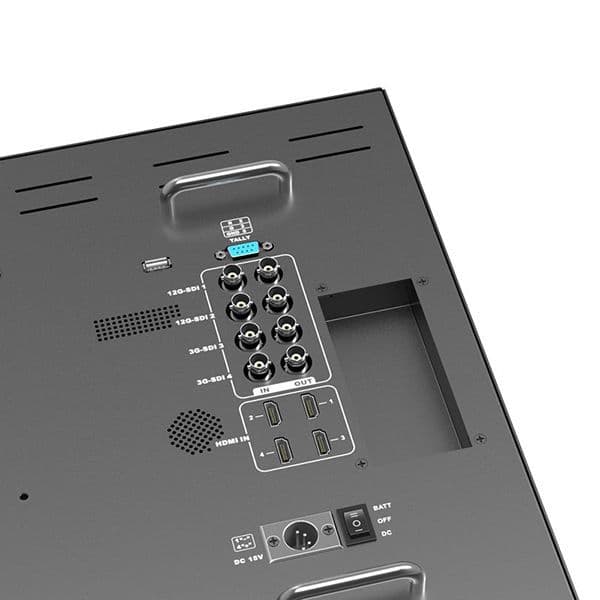

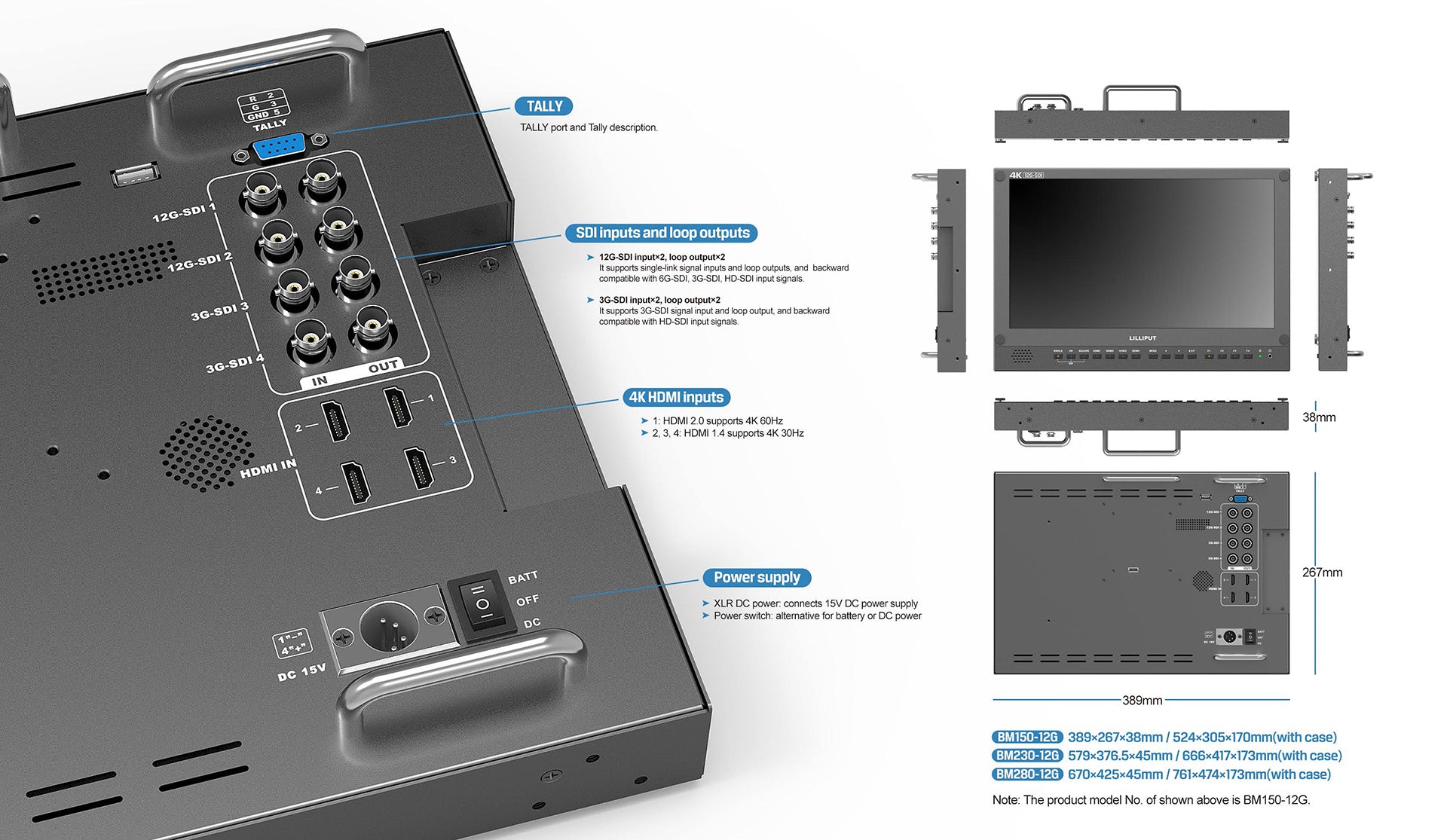

| Video Input | |

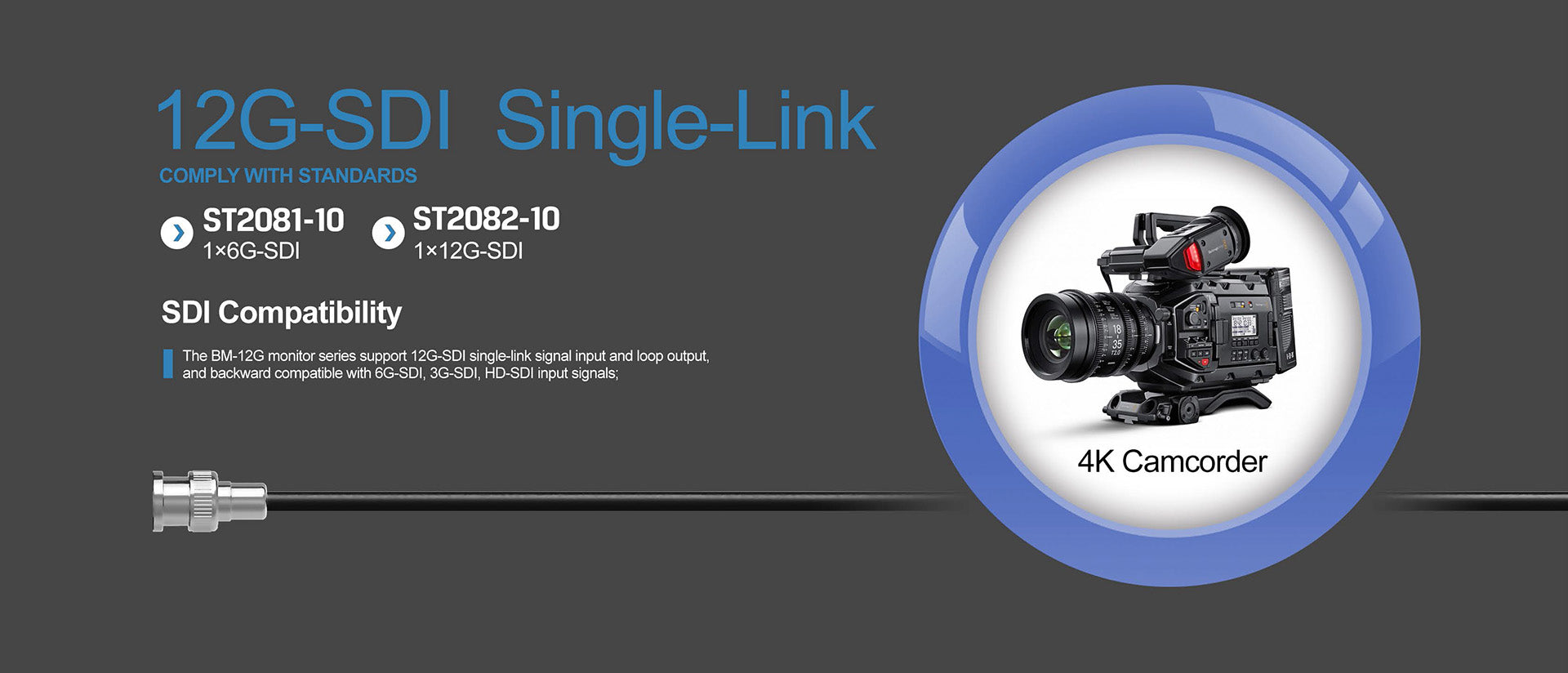

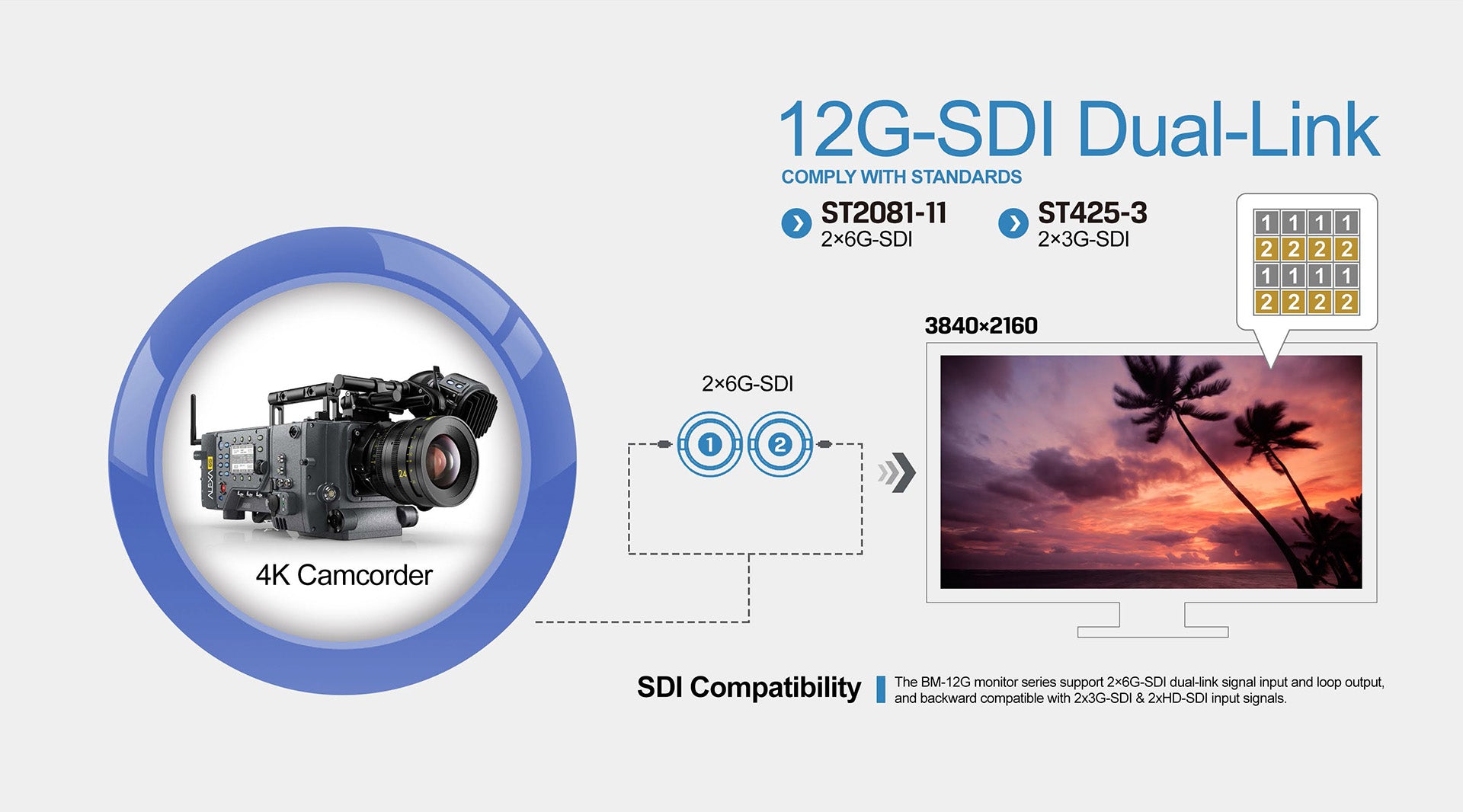

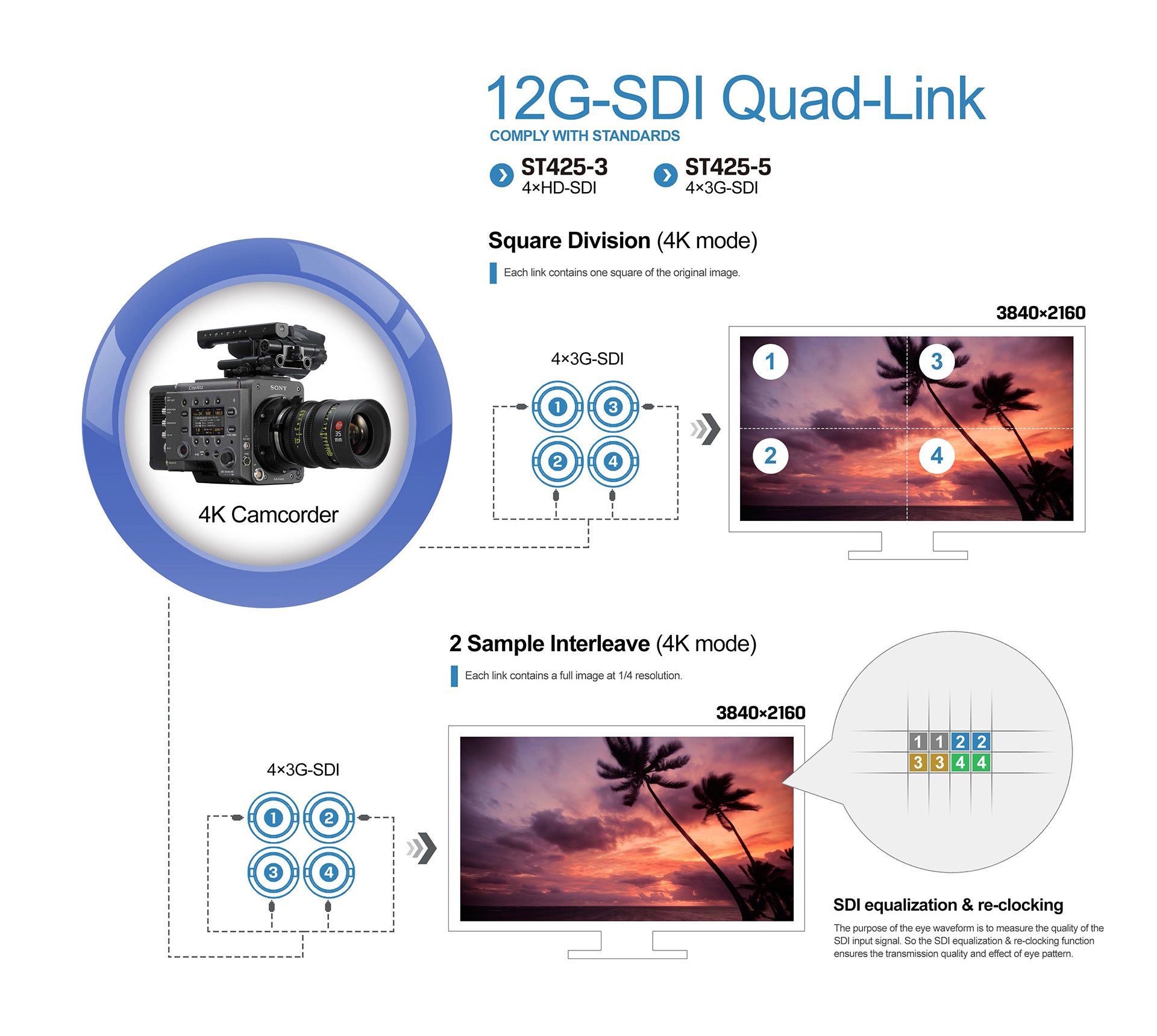

| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | 61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | 0~50 |
| Storage Temperature | -20~60 |
| Other | |

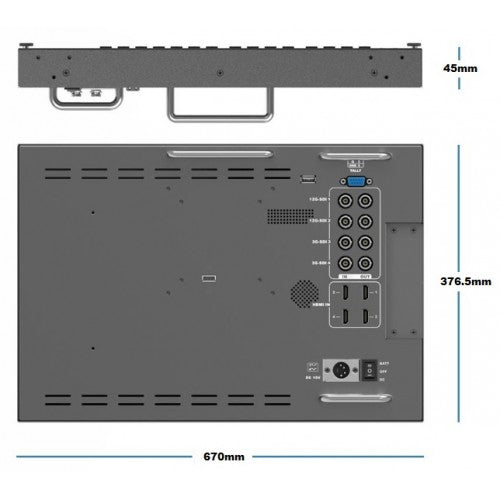

| Dimension(LWD) | 579×376.5×45mm / 666×417×173mm (with case) |
| Weight | 8.6kg / 17kg (with case) |
Accessories:
