- £719.00
£759.00- £719.00
- Unit price
- per
iFrame
Availability:
Standard Delivery (3-7 business days – please contact us to check for faster delivery)
Condition:
New

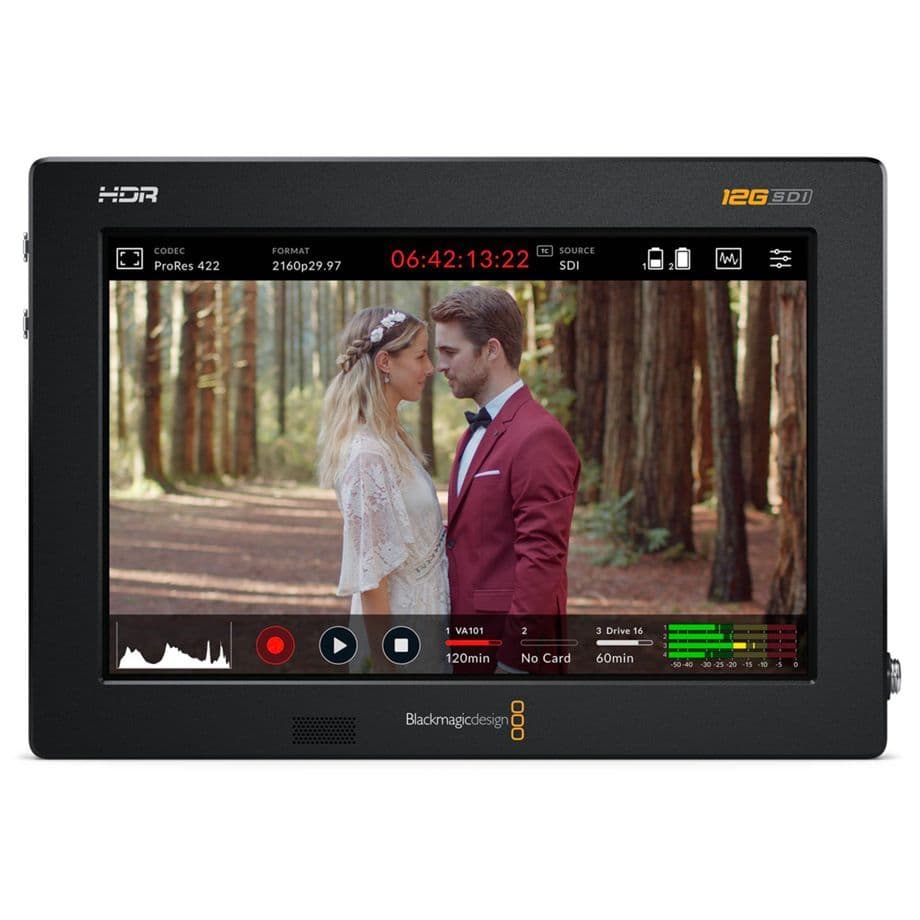

Blackmagic Video Assist 7" 12G HDR adds professional monitoring and recording to any SDI or HDMI camera in all HD, Ultra HD, 2K and 4K DCI formats! The super bright 2500nit 7 inch HDR monitor supports 3D LUTs and features professional scopes along with powerful focus assist and exposure tools that help you accurately set focus, exposure and frame shots. Dual built in SD card recorders save files from any camera in 10-bit 4:2:2 ProRes or DNx formats. You also get two mini XLR connections with 48V of phantom power and a noise floor of -128dBV for high quality, crystal clear audio recording. Plus, you can start editing immediately because you don’t have to convert the files!

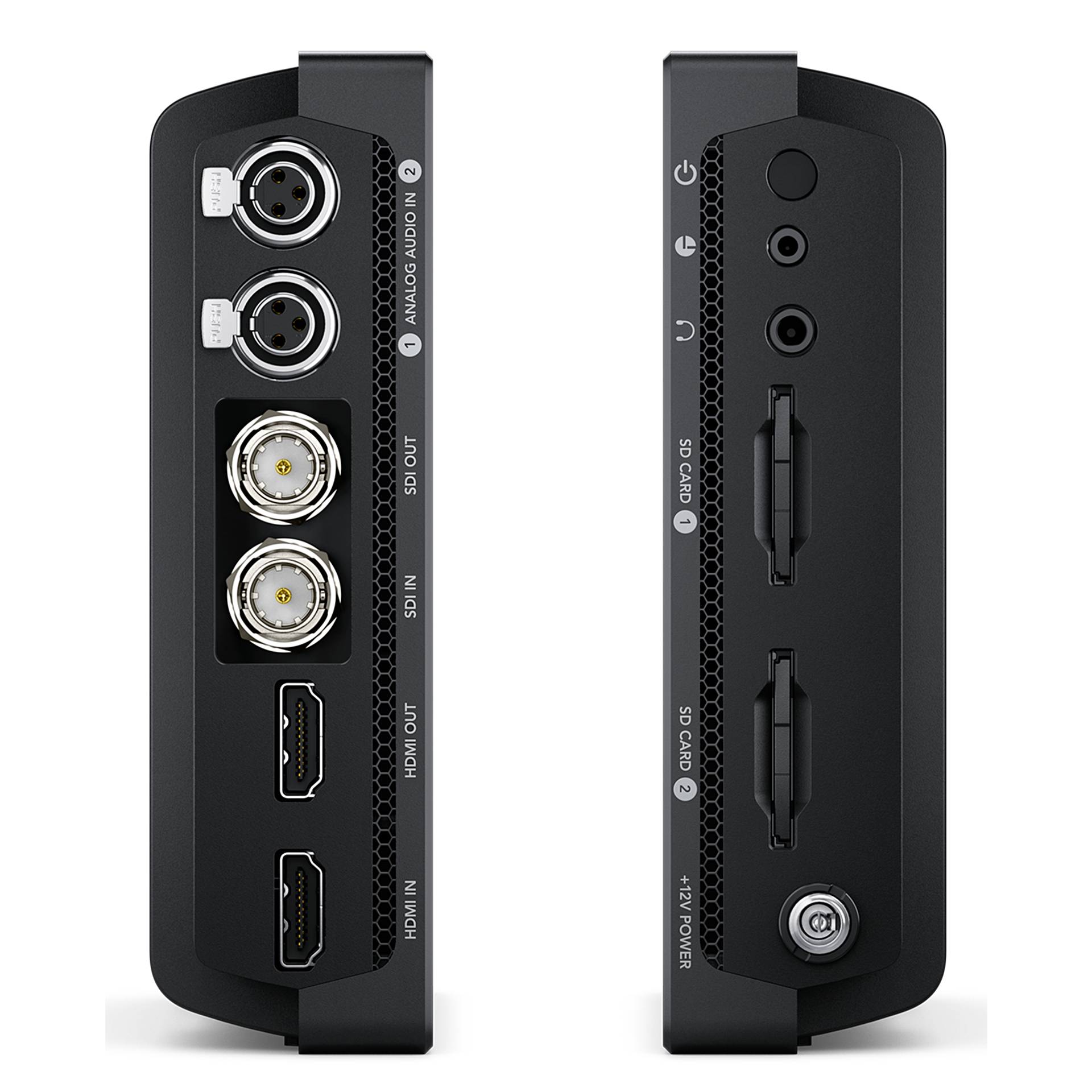

Connections:
- SDI Video Inputs: 1
- SDI Video Outputs: 1
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
- HDMI 2.0a Video Inputs: 1
- HDMI 2.0a Video Outputs: 1
- Analog Audio Inputs: 2 x balanced mini XLR with phantom power
- Analog Audio Outputs: 1 x 3.5 mm headphone jack.
- Built in Speaker: Mono
- Screen Dimensions: 7 inch 1920 x 1200.
- Screen Brightness: 2500nits
- Screen Color: P3 wide color gamut
- SDI Audio Inputs: 16 channels embedded via 12G-SDI
- SDI Audio Outputs
- 16 channels embedded via 12G-SDI
- HDMI Audio Inputs: 8 channels embedded via HDMI 2.0a
- HDMI Audio Outputs: 8 channels embedded via HDMI 2.0a
- Remote Control: 1 x 2.5mm LANC for Record Start and Stop.
- SD Interface: Dual UHS-II SD slots
- Storage Type: Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
- Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, initial setup, software updates and Video Assist Utility software Control.
SDI Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K Video Standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
- SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M, SMPTE 2084
- SDI Metadata Support: HD RP188
- Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
- Video Sampling: 4:2:2 YUV
- Color Precision: 10-bit
- Color Space: REC 601, REC 709, REC 2020
- HDR Support: HDR10, Hybrid Log Gamma
- Multiple Rate support: SDI and HDMI switches between 270 Mb/s, 1.5 Gb/s, 3 Gb/s, 6 Gb/s and 12 Gb/s
HDMI Video Standards
- SD Video Standards: 525i59.94 NTSC, 625i50 PAL
- HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
- Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
- 4K Video Standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI
- HDMI Color Precision: 10-bit
- HDR Support: HDR10, Hybrid Log Gamma
- Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of Content.
Supported Codecs:
- ProRes 422 HQ, ProRes 422, ProRes 422 LT
- DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF
- DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF
Recorder control:
- Integrated capacitive LCD touchscreen with on-screen control of setting and navigation menus
External control:
- LANC, SDI start/stop, running timecode
Storage medium:
- 2 UHS-II SD cards for UltraHD, compatible with regular SD for HD recording.
- USB Type C3.1 Generation 1 for recording to external hard drives
Storage medium type:
-
- SD cards of types SDXC UHS-II, SDXC UHS-I and SDHC UHS-I
