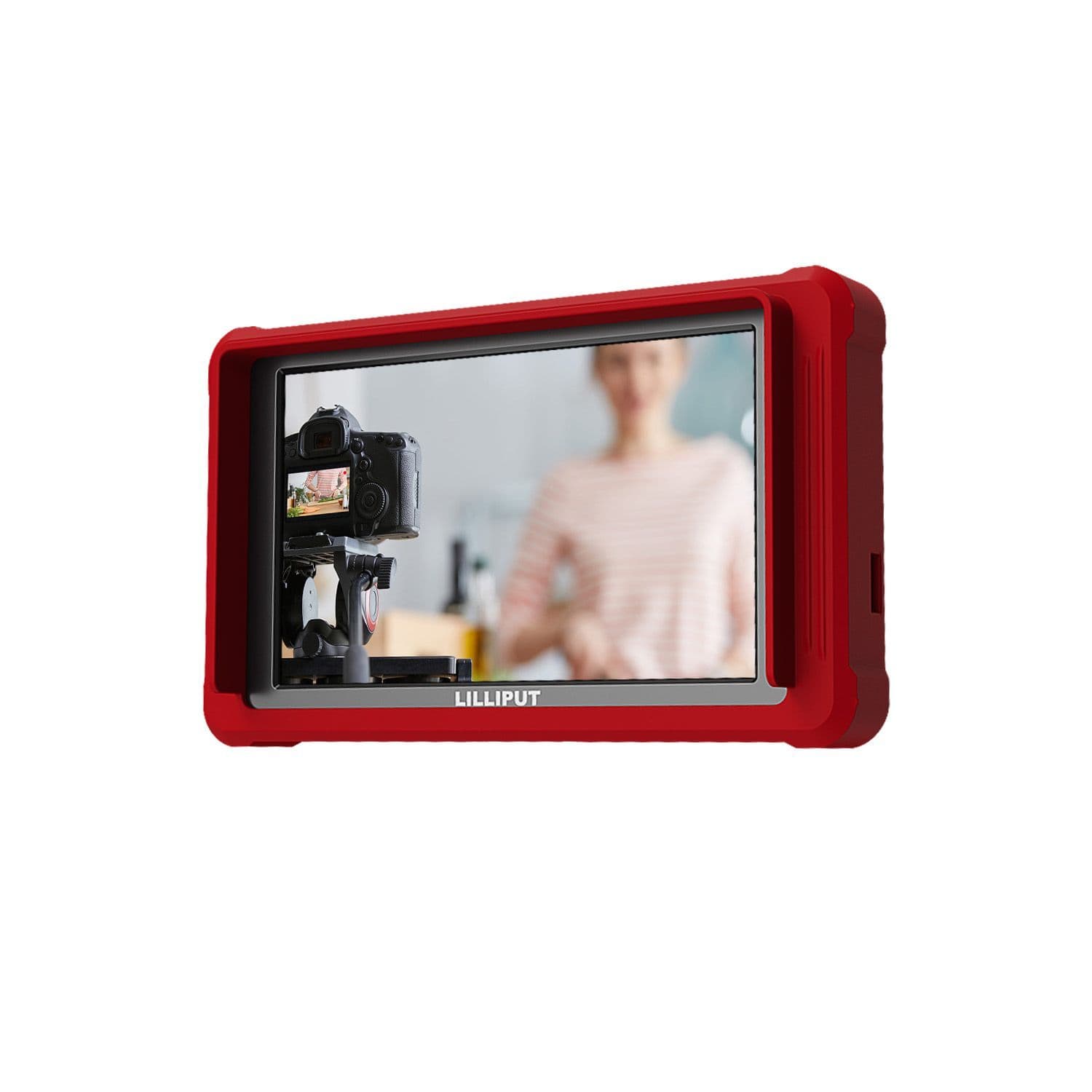

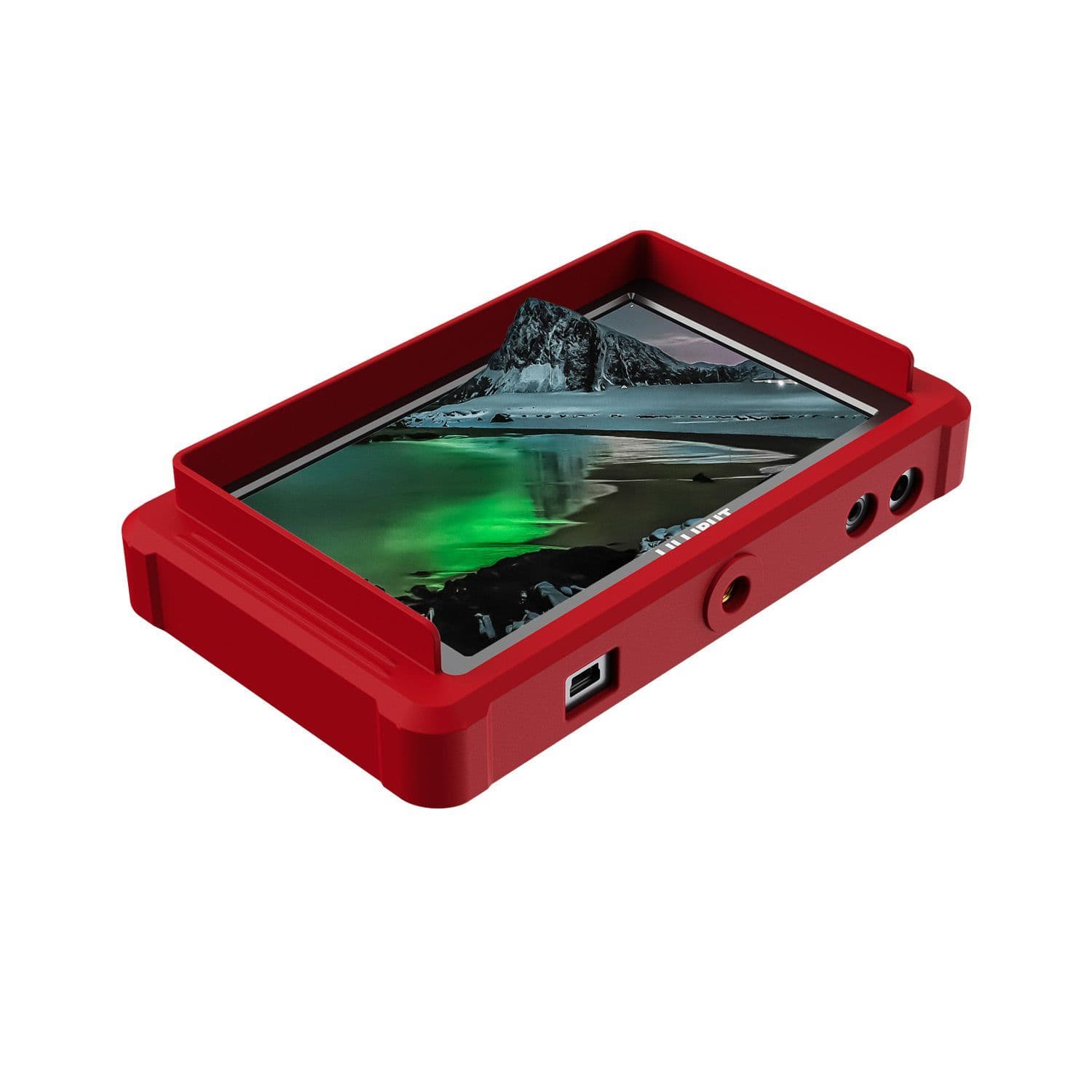

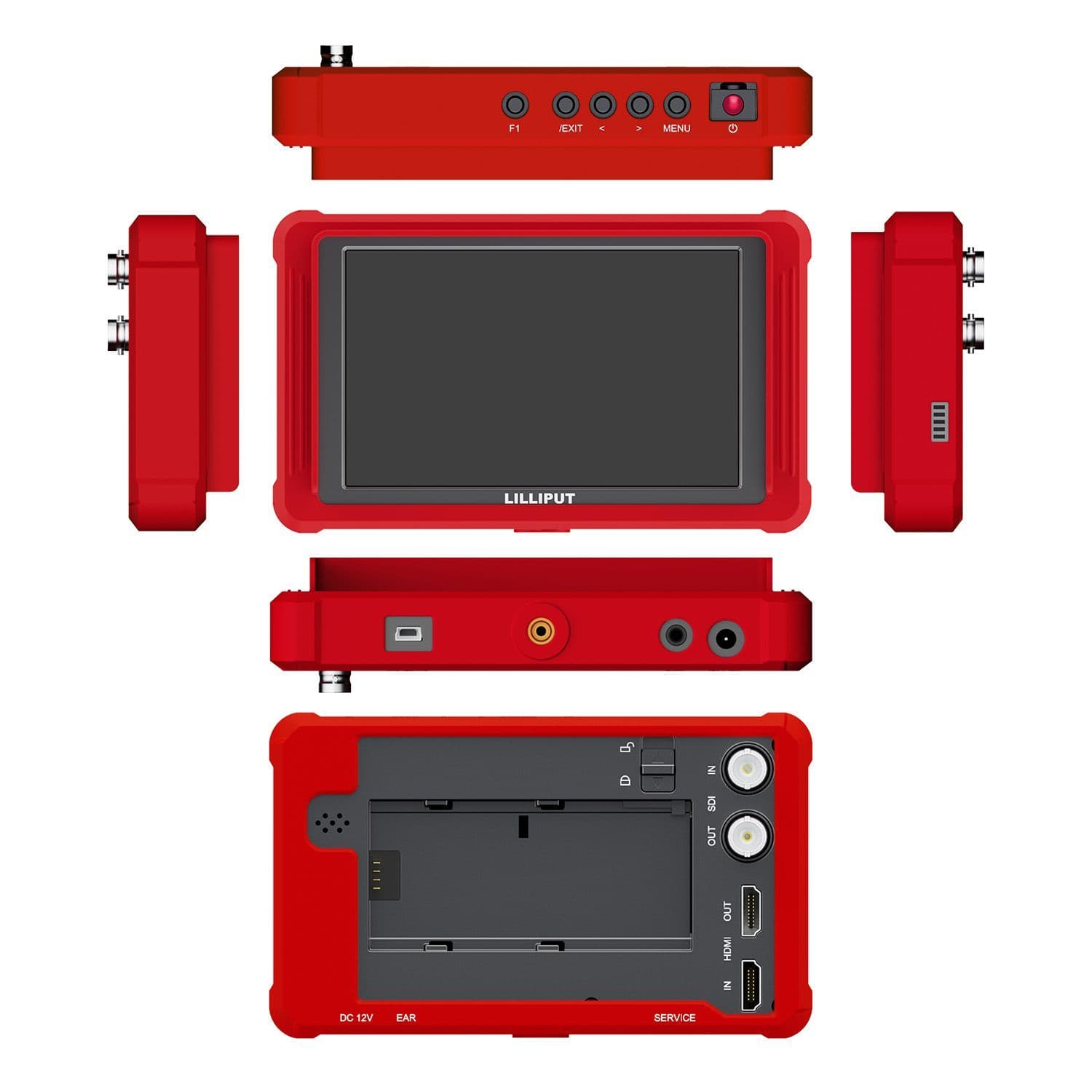

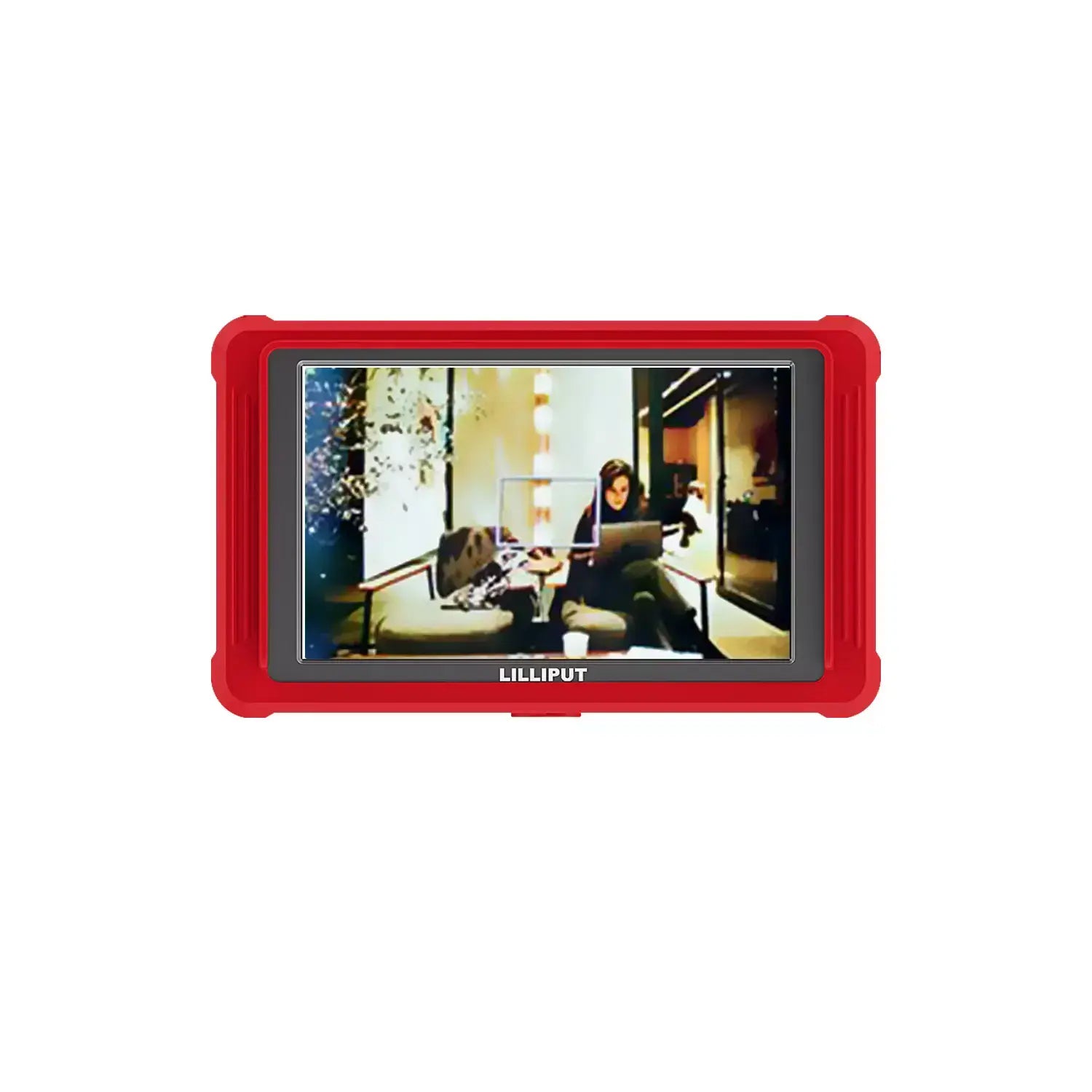

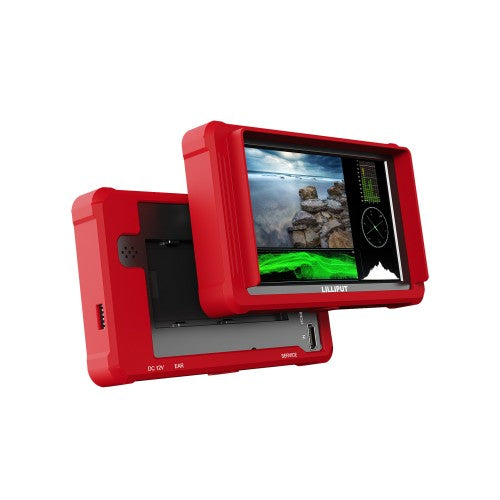

Lilliput FS5 - 5.4 HDMI 2.0 & 3G-SDI On-Camera Monitor

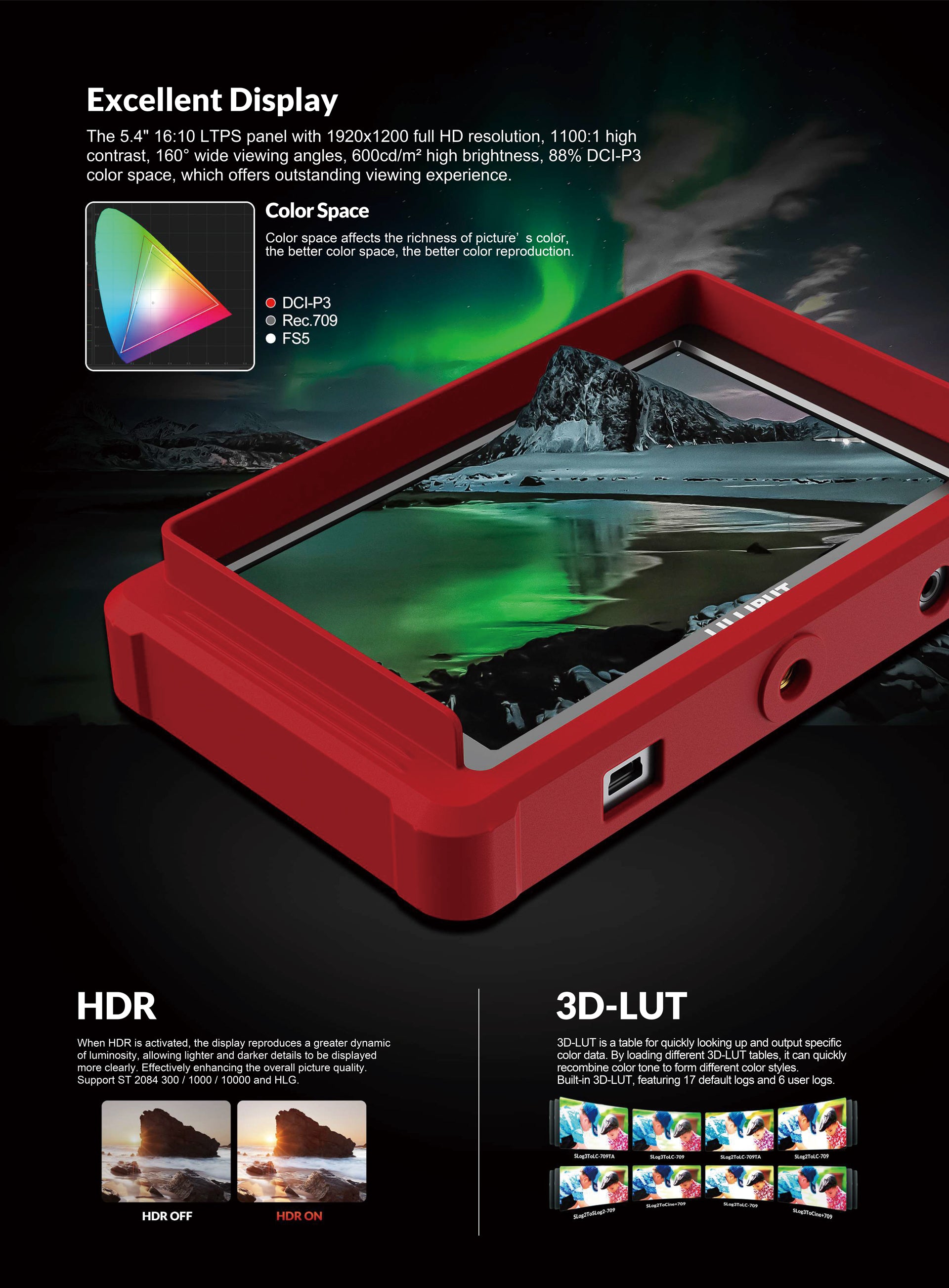

Aluminium housing design with silicone case, which effectively improves monitor durability. It also come with excellent display which 88% DCI-P3 colour space, which offers outstanding viewing experience.

Key Specs:
  • Model No.: FS5
  • Display: 5.4 inch 1920 x 1200

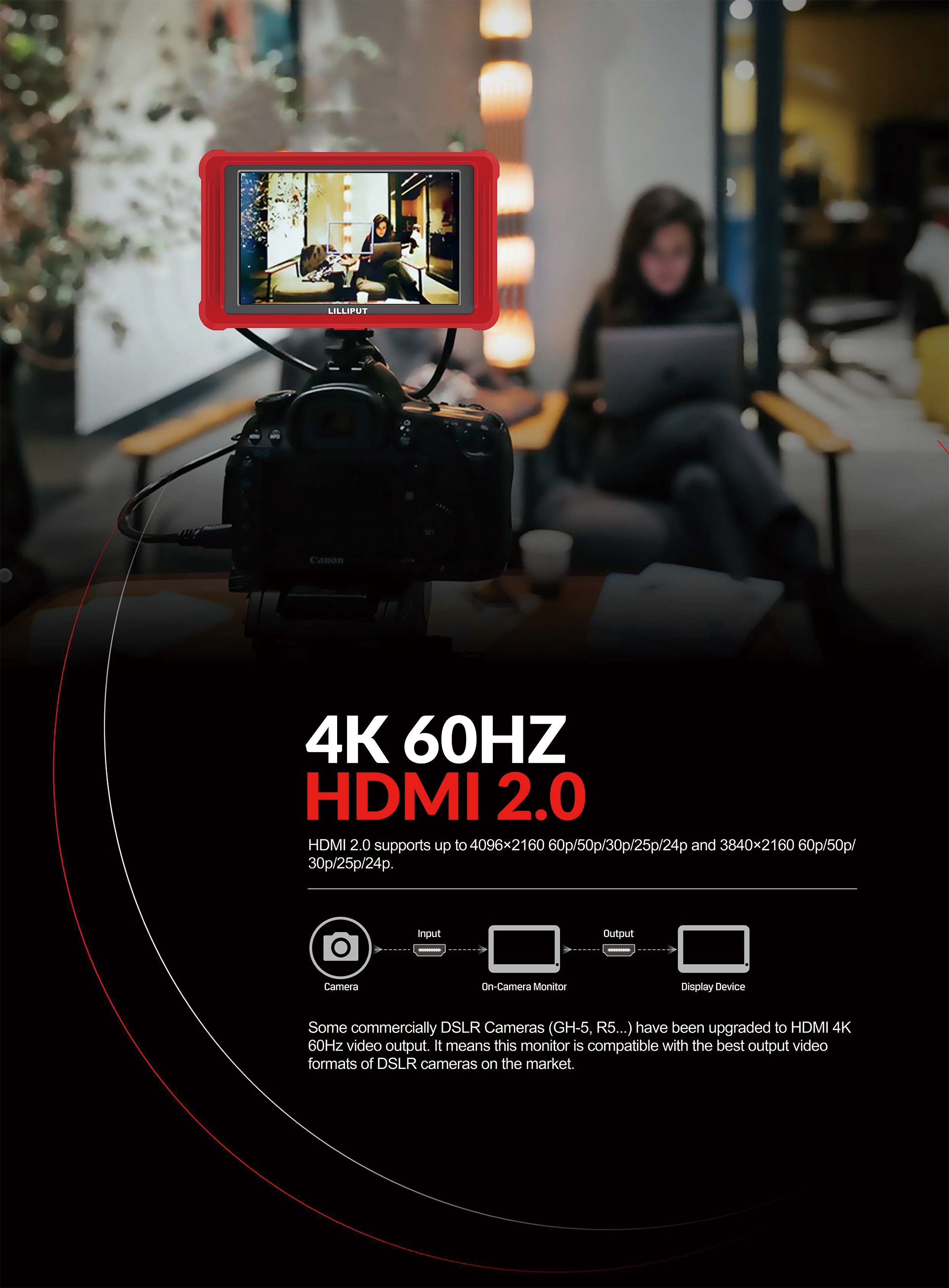

  • Input : 3G-SDI, HDMI 2.0 (4K 60 Hz)
  • Output: 3G-SDI, HDMI 2.0 (4K 60 Hz)

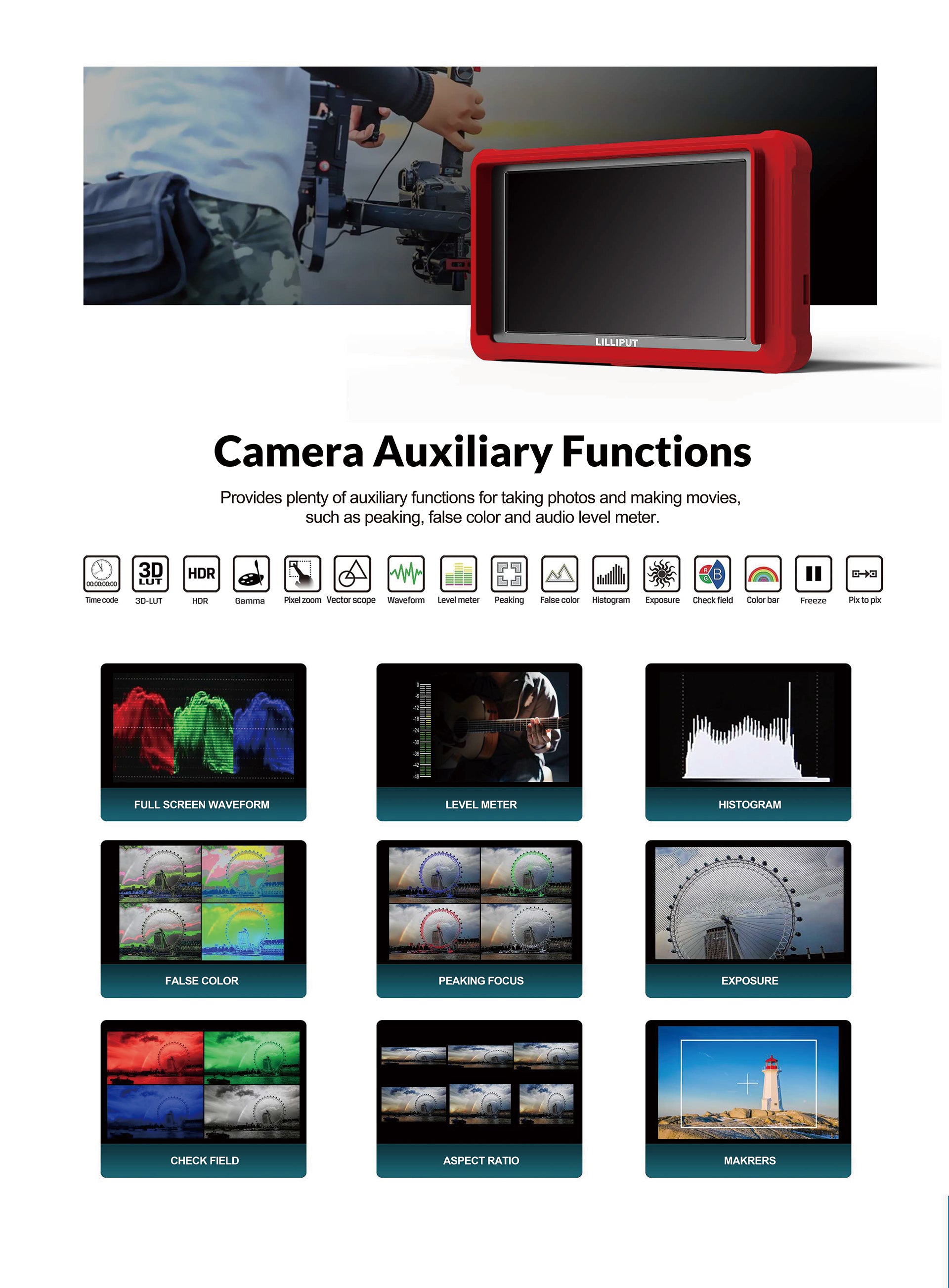

  • Feature: 3D-LUT, HDR, Camera Auxiliary Function

5.5-INCH-SDI-monitor

5-inch-on-camera-monitor5.4-inch-sdi-camera-monitor5-sdi-camera-monitorSDI-Camera-monitorLilliput-5-INCH

Specifications:

DISPLAY Panel 5.4 LTPS
Physical Resolution 1920×1200
Aspect Ratio 16:10
Brightness 600cd/
Contrast 1100:1
Viewing Angle 160°/ 160° (H/V)
HDR ST 2084 300/1000/10000 / HLG
Supported Log Formats Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User
LUT Support 3D-LUT (.cube format)
INPUT 3G-SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
OUTPUT 3G-SDI 1
HDMI 1 (HDMI 2.0, supports up to 4K 60Hz)
FORMATS SDI 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
HDMI 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
AUDIO Speaker 1
Ear Phone Slot 1
POWER Current 0.75A (12V)
Input Voltage DC 7-24V
Battery Plate NP-F / LP-E6
Power Consumption 9W
ENVIRONMENT Operating Temperature -20~50
Storage Temperature -30~70
DIMENSION Dimension(LWD) 154.5×90×20mm
Weight 295g

Accessories:
