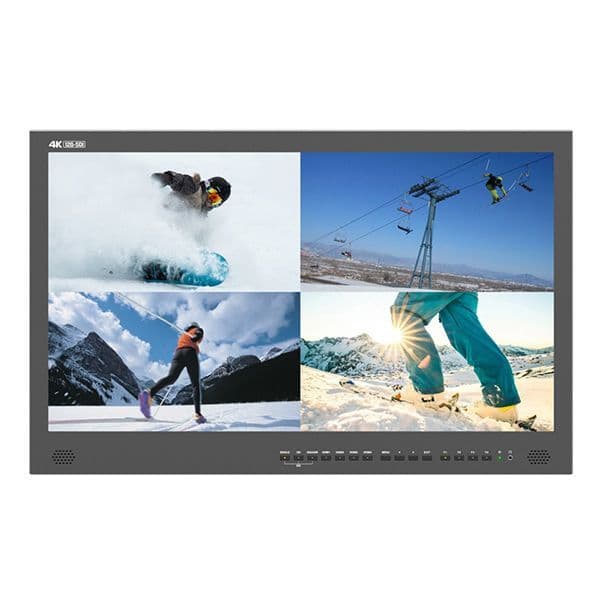

It has two 12G-SDI ports and two 3G-SDI ports, and these four ports are compatible with all cameras on the market. It supports single-link 12G-SDI, dual-link 6G-SDI, and quad-link 3G-SDI, and these different combinations ultimately result in the same 12G-SDI video picture, depending on which camera you use. Of course, the BM280-12G has more energy than your imagination. It can support simultaneous quad-viewing in any combination of SDI and HDMI signals, and real-time monitoring of four video feeds. Externally adapted to 6RU rack-mounting, that can be mounted on a broadcast TV cabinet for playback and monitoring.
Key Specs:- Model: BM280-12G
- Physical resolution: 3840×2160

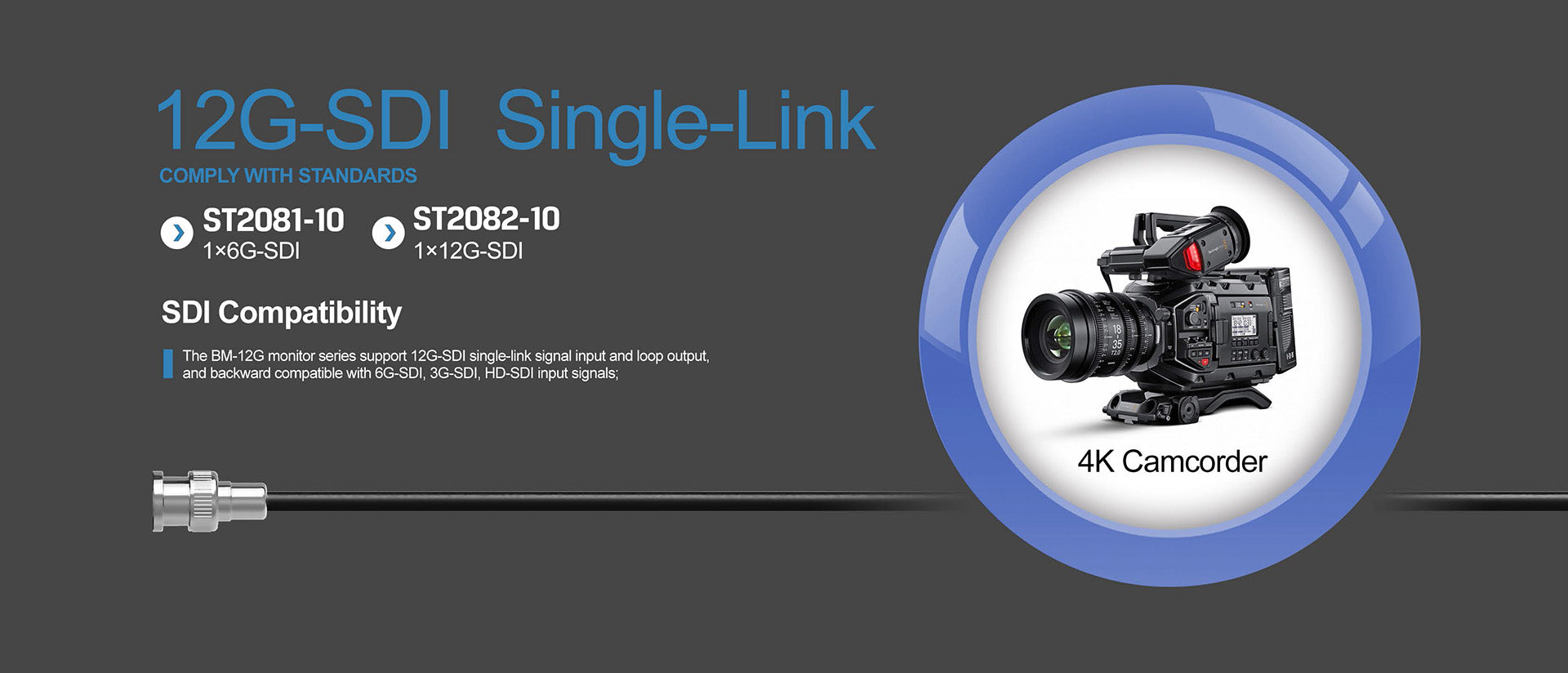

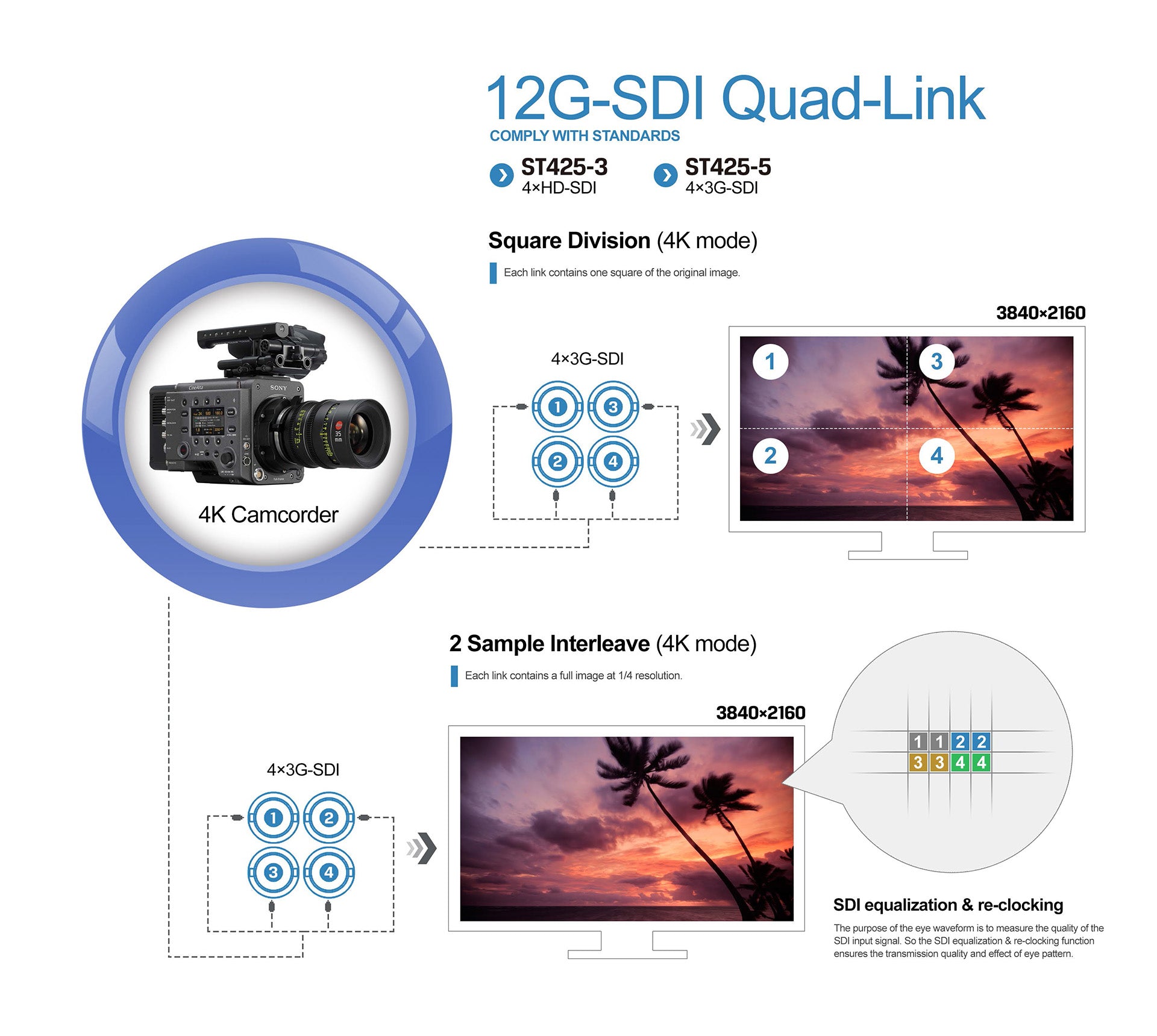

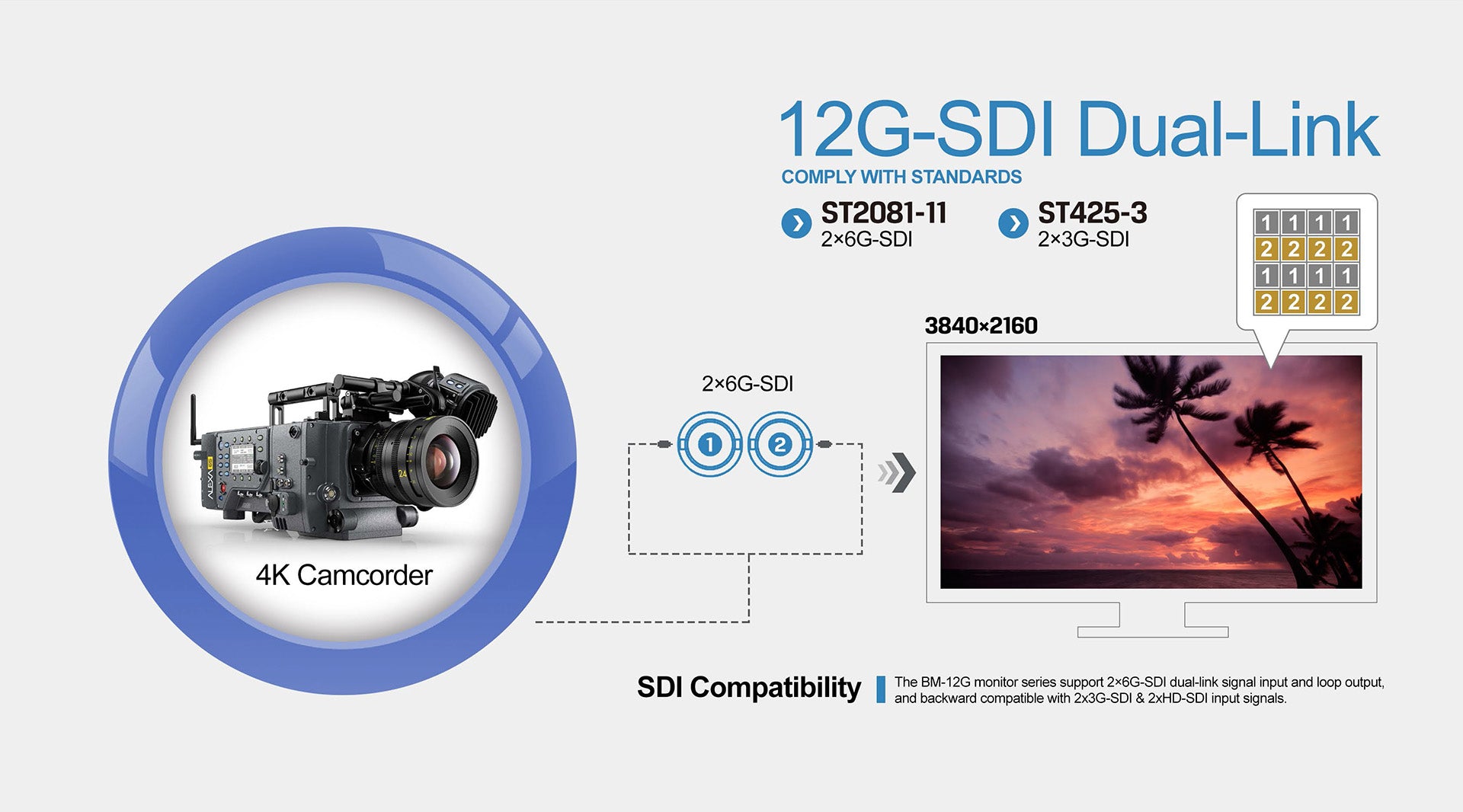

- 12G-SDI interface: Support single / dual / quad-link 12G SDI signal
- HDMI 2.0 interface: Support 4K HDMI signal
Specifications:
| Display | |
| Size | 28 |
| Resolution | 3840×2160 |
| Brightness | 300cd/m² |
| Aspect ratio | 16:9 |
| Contrast | 1000:1 |
| Viewing Angle | 170°/160°(H/V) |
| Video Input | |

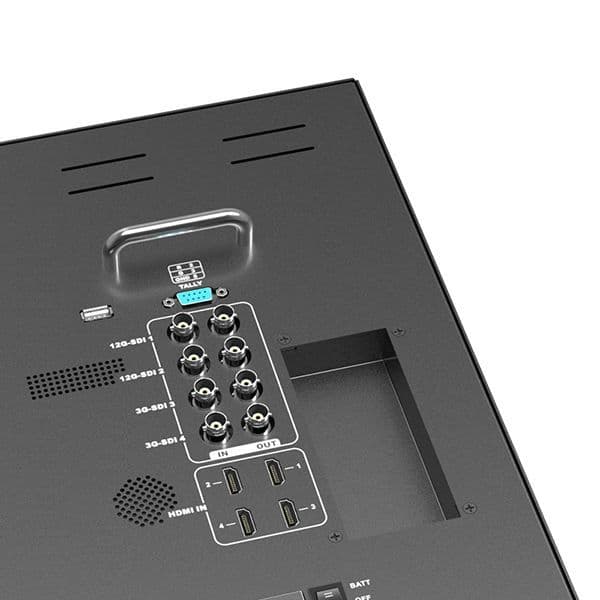

| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| HDMI | 1×HDMI 2.0, 3xHDMI 1.4 |
| Video Loop Output (Uncompressed true 10-bit or 8-bit 422) | |
| SDI | 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link) |
| Supported In / Out Formats | |
| SDI | 720p 50/60, 1080i 50/60, 1080pSF 24/25/30, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60 |
| Audio In/Out (48kHz PCM Audio) | |
| SDI | 12ch 48kHz 24-bit |
| HDMI | 2ch 24-bit |
| Ear Jack | 3.5mm |
| Built-in Speakers | 2 |
| Power | |
| Operating power | 61.5W |
| DC In | DC 12-24V |
| Compatible batteries | V-Lock or Anton Bauer Mount |
| Input voltage (battery) | 14.4V nominal |
| Environment | |
| Operating Temperature | 0~50 |
| Storage Temperature | -20~60 |
| Other | |
| Dimension(LWD) | 670×425×45mm / 761×474×173mm (with case) |
| Weight | 9.4kg / 21kg (with case) |
Accessories:
