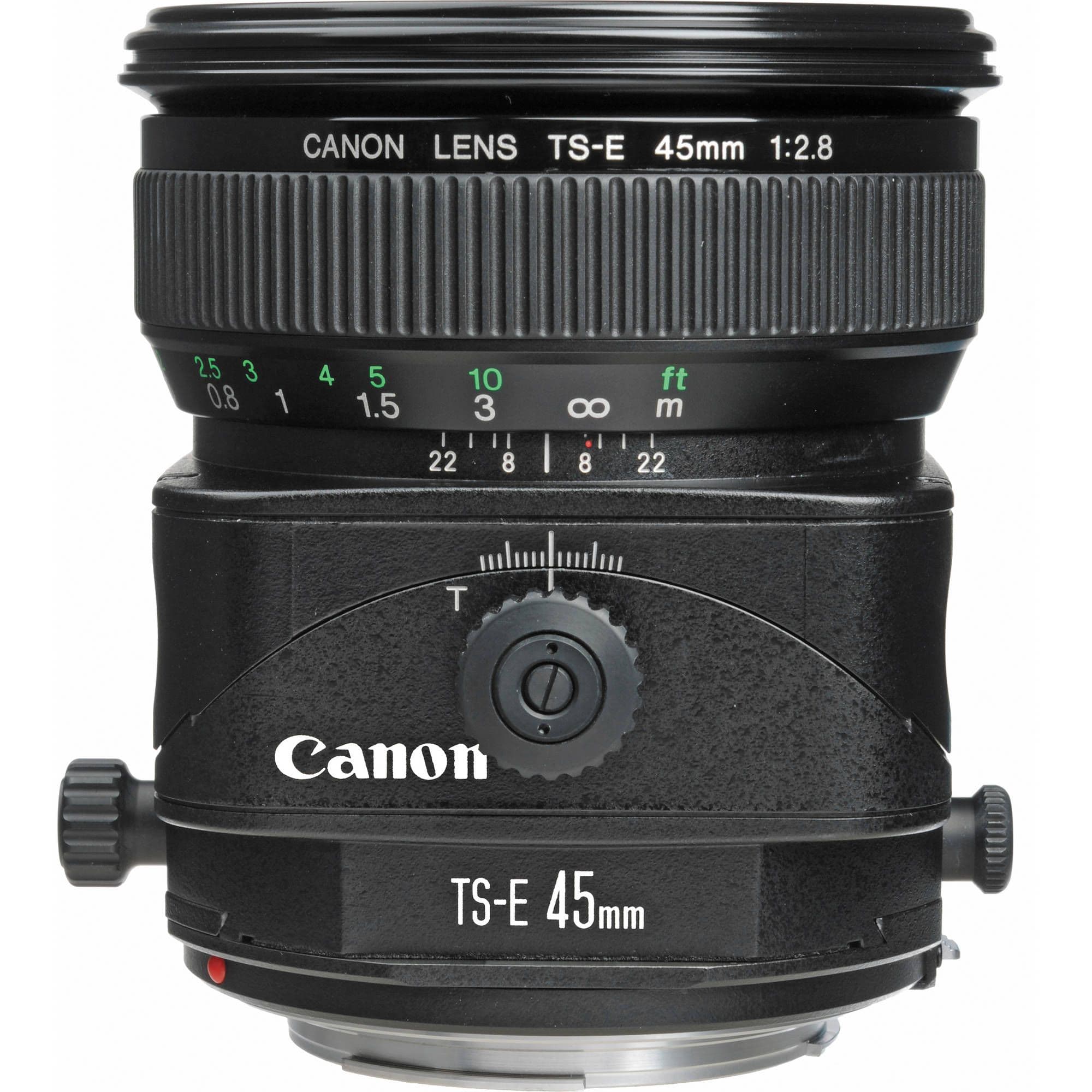

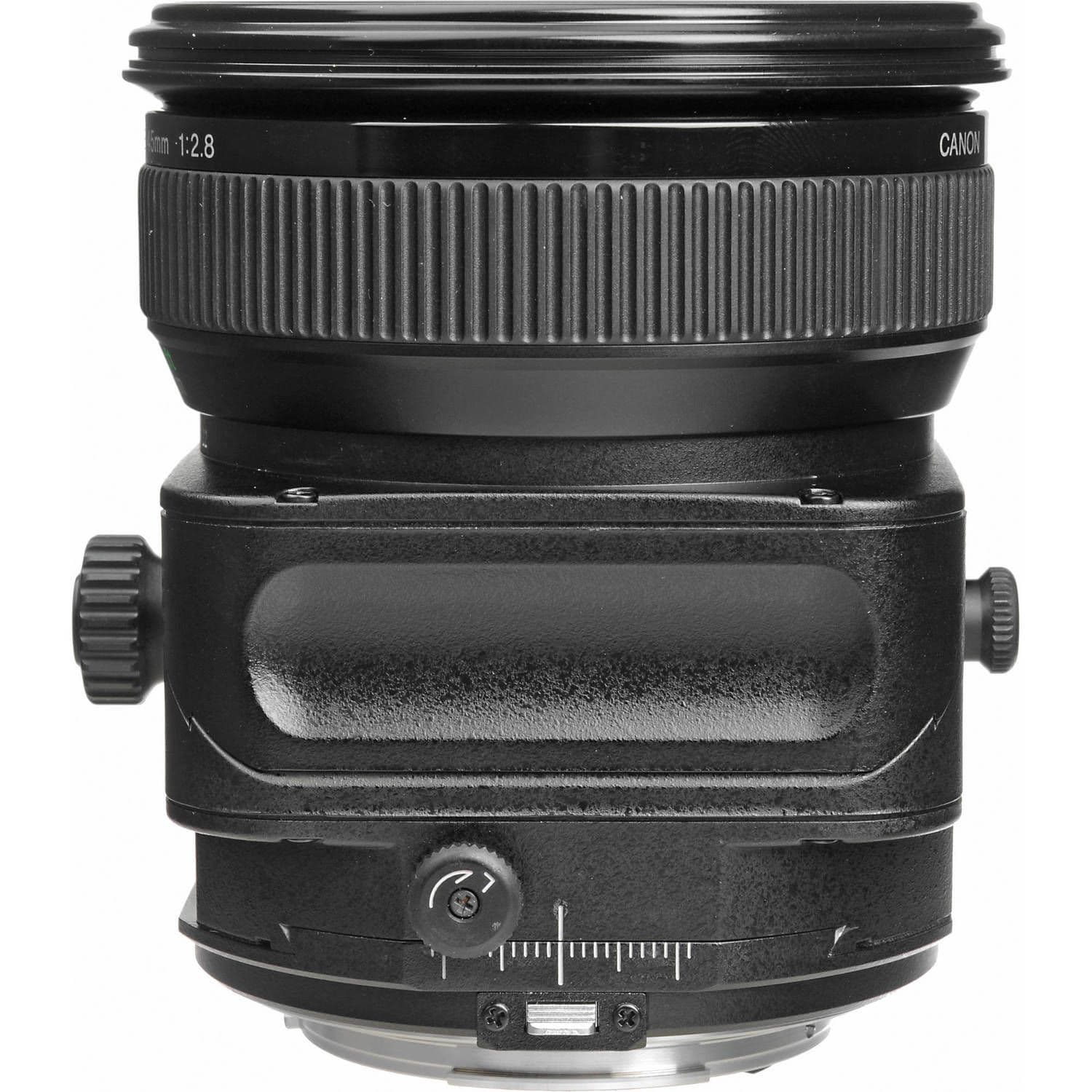

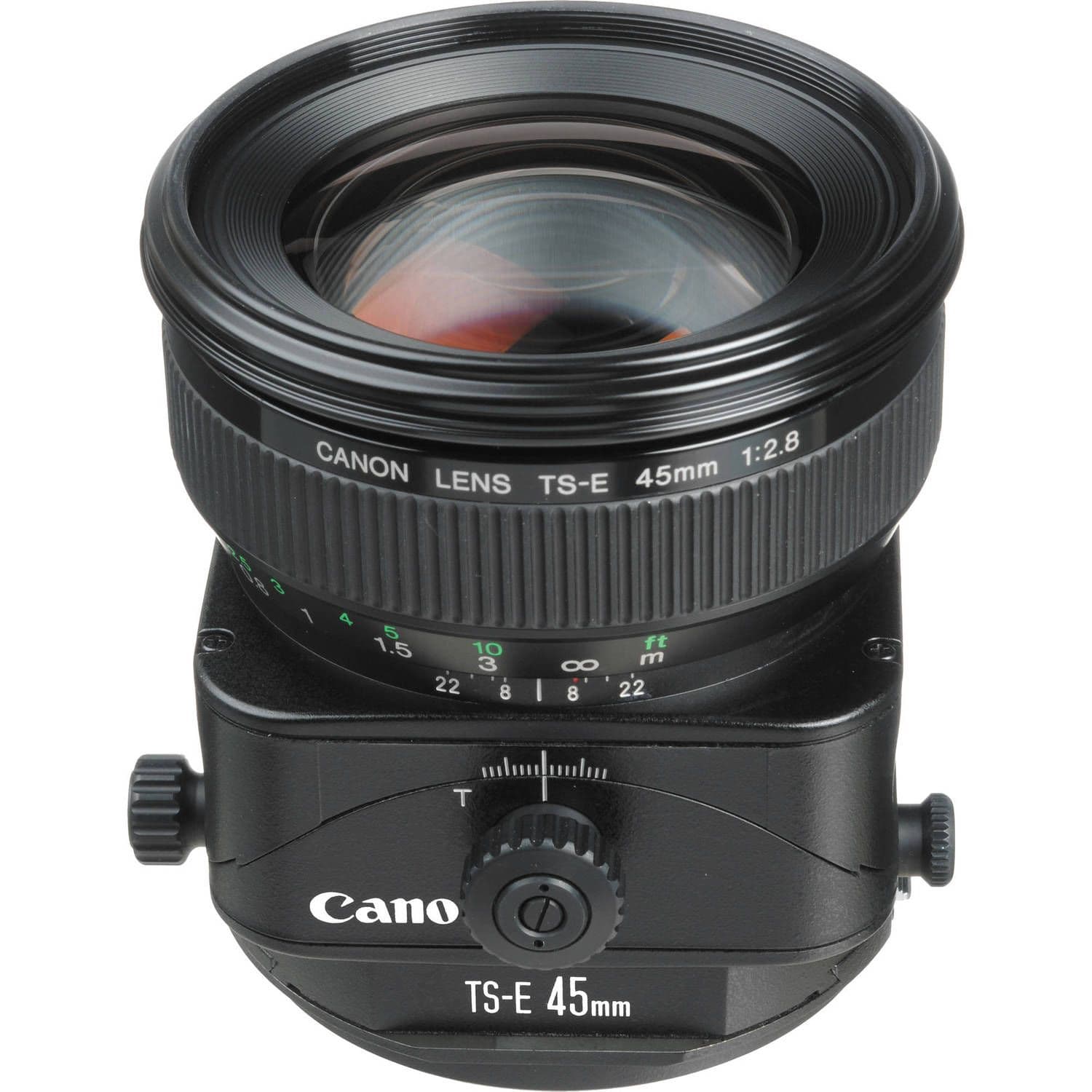

The TS-E 45mm f/2.8 Tilt-Shift Lens from Canon is a standard length manual focus lens for EF mount cameras with a 51º diagonal angle of view on full frame cameras. It provides tilt-shift functions to control perspective and correct convergence of lines within your frame. It is especially useful in architecture, landscape, and product photography. The optical tilt mechanisms enable precise control of depth of field along with perspective control.

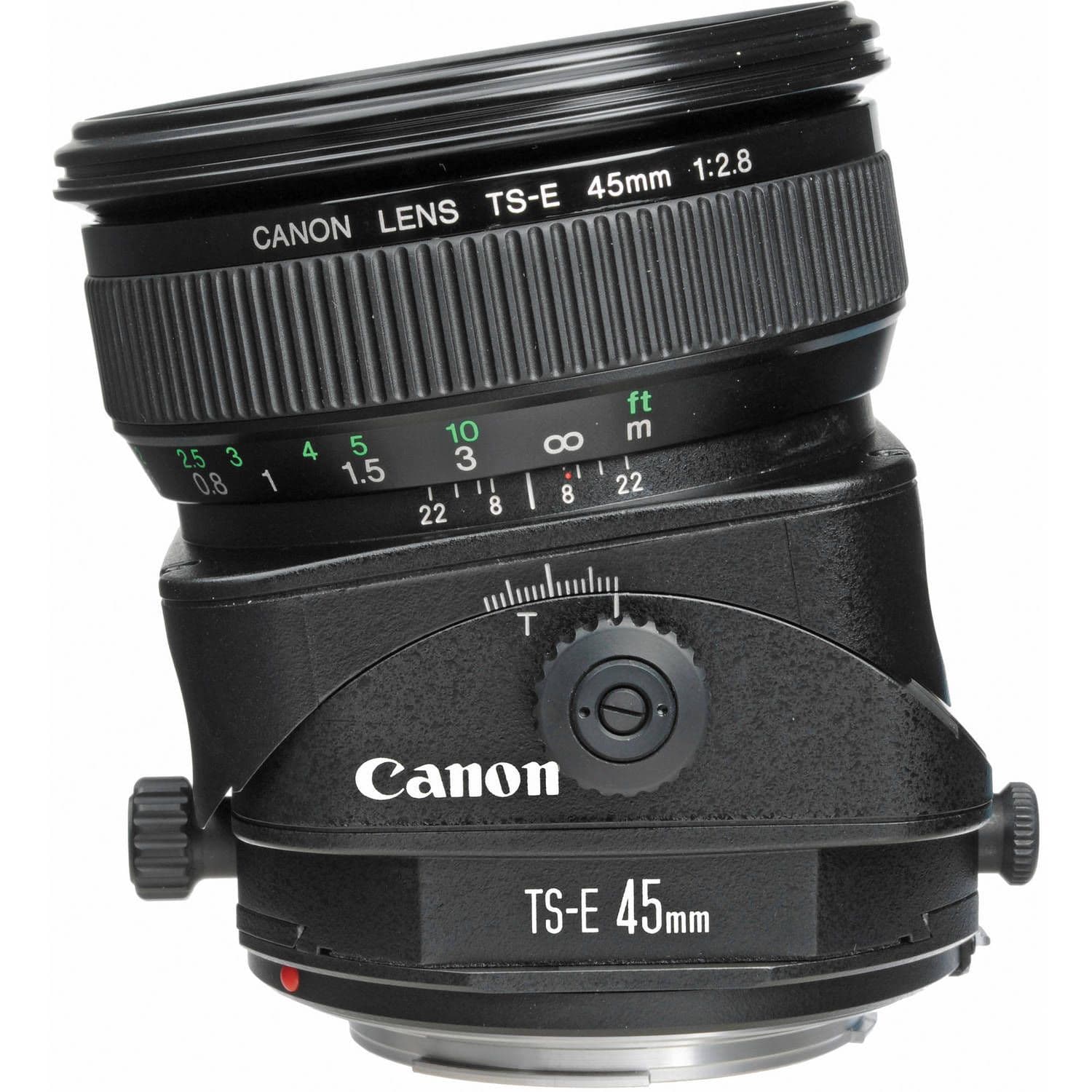

The tilt-shift function on the 45mm f/2.8 lens allows adjustment of the focal plane by an angle of +/-8º and enables parallel shift of the optical axis by +/-11mm. Both tilt and shift can be engaged singly and in combination. The lens mount itself can rotate left or right by 90º with click-stop adjustment each 30º.
A floating lens system with rear focusing maintains the compact form of the lens while enabling sharp focus throughout the focus range. The minimum focus distance for this lens is 15.6". Subwavelength Structure Coating (SWC) reduces ghosting and flare and a truly circular diaphragm results in pleasing out-of-focus backgrounds. The focus ring on the lens provides precise manual focus action and the tilt and shift knobs are sturdy and smoothly control the mechanisms.
Principal specifications | ||
---|---|---|
Lens type | Prime lens | |
Max Format size | 35mm FF | |
Focal length | 45 mm | |
Image stabilization | No | |
Lens mount | Canon EF | |
Aperture | ||
Maximum aperture | F2.8 | |
Minimum aperture | F22 | |
Aperture ring | No | |
Number of diaphragm blades | 8 | |
Optics | ||
Elements | 10 | |
Groups | 9 | |
Focus | ||
Minimum focus | 0.40 m (15.75) | |
Maximum magnification | 0.16× | |
Autofocus | No | |
Full time manual | No | |
Focus method | Rear | |
Focus notes | Manual focus only | |
Distance scale | Yes | |
DoF scale | Yes | |
Physical | ||
Weight | 645 g (1.42 lb) | |
Diameter | 81 mm (3.19) | |
Length | 90 mm (3.55) | |
Materials | Metal barrel, metal mount | |
Sealing | No | |
Colour | Black | |
Filter thread | 72.0 mm | |
Hood product code | EW-79BII | |
Tripod collar | No | |
Optional accessories | Hard Case LH-D14 Soft Case LP1216 |
