- £459.00
- £459.00
- Unit price
- per
iFrame
Availability:
Standard Delivery (3-7 business days – please contact us to check for faster delivery)

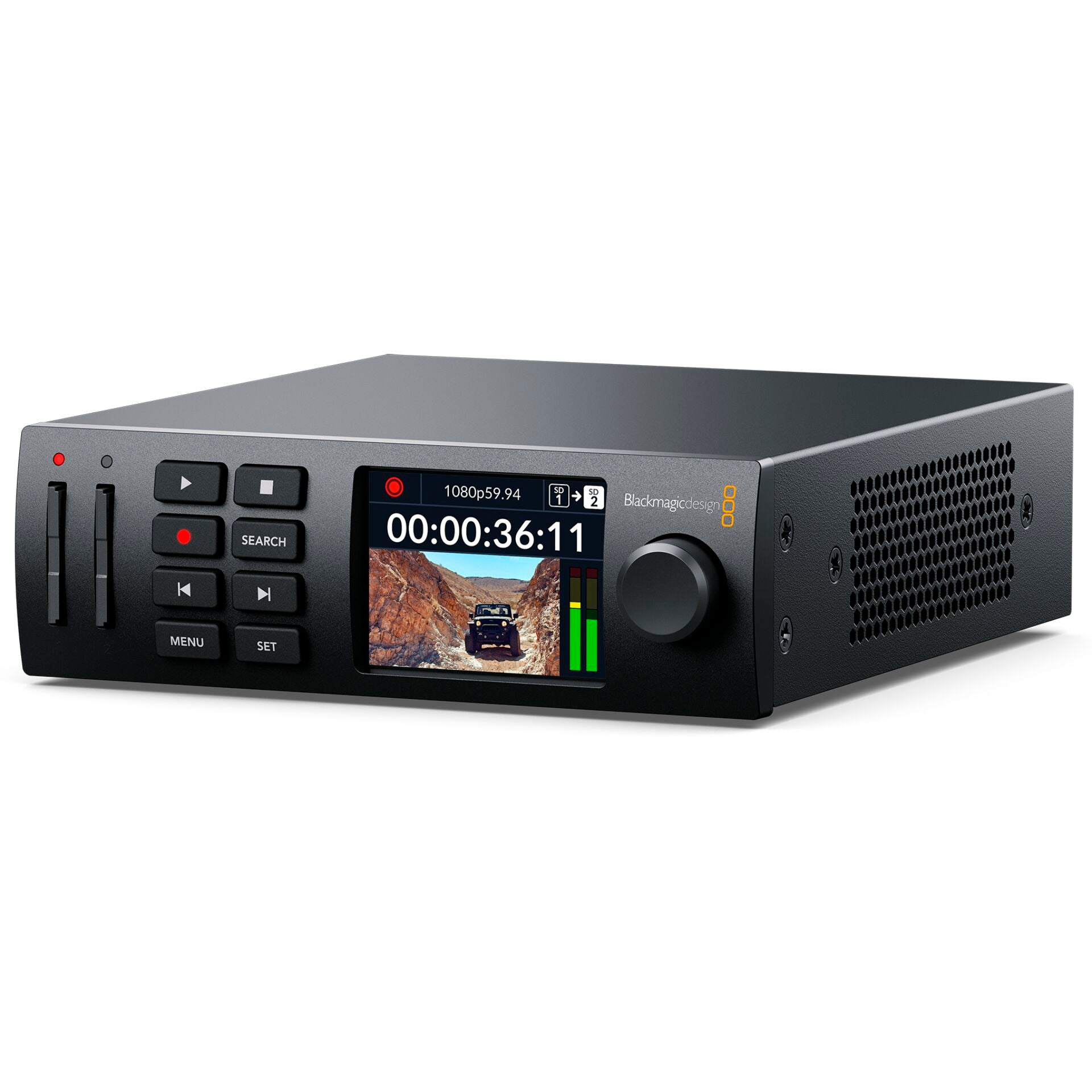

This small HyperDeck Studio model has the form factor of the Teranex Minis. The modular design allows three HyperDeck Studio HD Minis to be installed in a Teranex Mini Rack Shelf on one rack width. Alternatively, place the Minis alongside other products such as mixers, converters or streaming processors. The Minis are small with powerful features: 3G-SDI inputs and outputs, HDMI output, dual SD card slots, built-in clock and timecode generators, front panel controls, and AC and DC power jacks. Connected to a computer via the USB port, your HyperDeck Studio HD Mini acts like a webcam and you can use any video software.

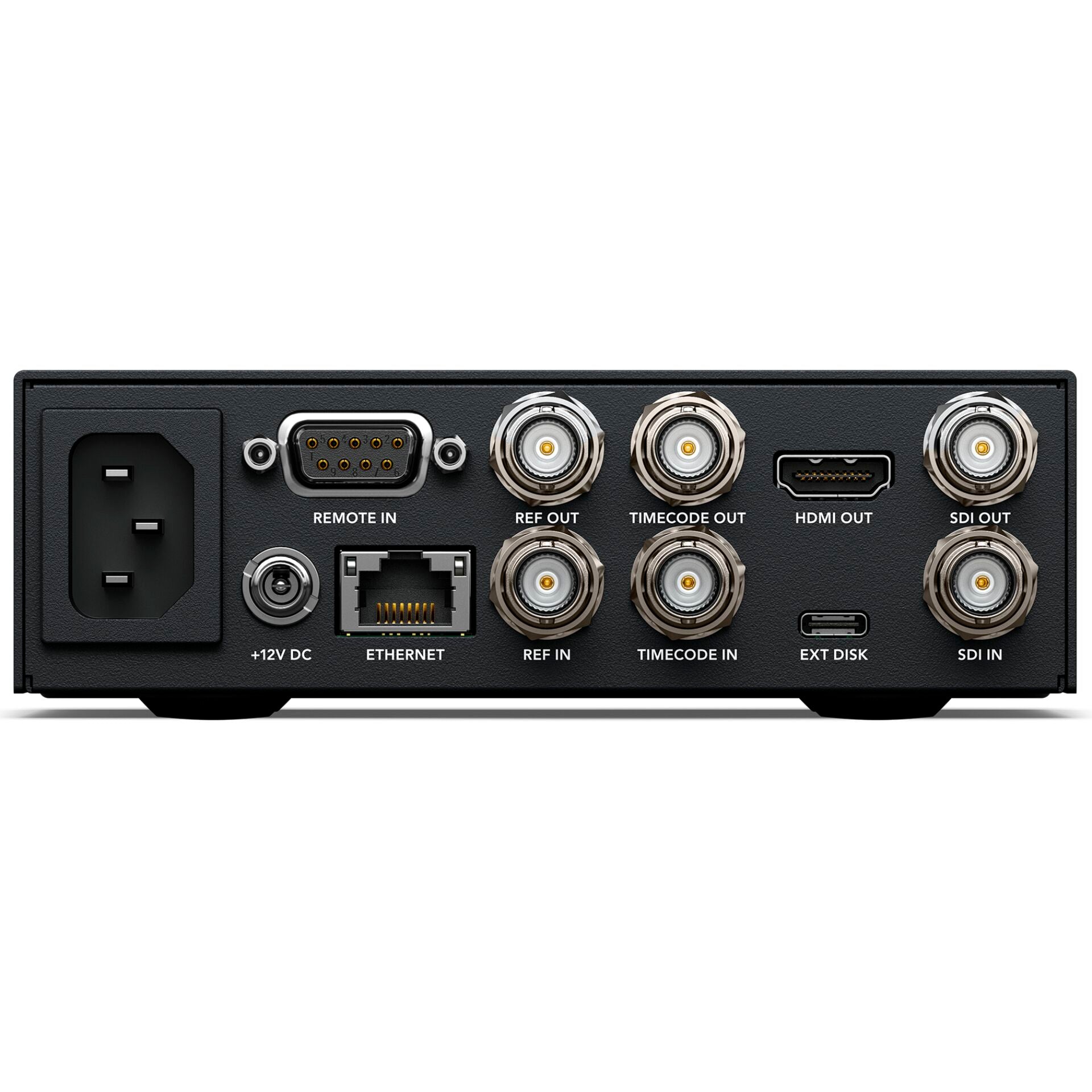

Connections:
- SDI video inputs: 1
- SDI video outputs: 1
- SDI rates: 270 Mbps; 1.5 G; 3 G
- HDMI video outputs: 1
- Screen: 2.2-inch LCD
- Time code connections: 1 BNC input, 1 BNC output
- Reference connections: 1 BNC input, 1 BNC output; Tri-Sync or Black Burst
- SDI audio inputs: 16 embedded audio channels
- SDI audio outputs: 16 embedded audio channels
- HDMI audio outputs: 8 embedded audio channels
- Remote control: 1 RS-422 input
- Recorder configuration: via user interface or Blackmagic HyperDeck Ethernet Protocol
- Ethernet: 1 Gbps
- Computer interface: 1 USB-C-3.0 (up to 5 Gb/s) for recording to external drives, webcam output, software configuration and updates
Standards:
- SD video standards: 525i/59.94 NTSC; 625i/50 PAL
- HD video standards:
- 720p/50; 720p/59.94; 720p/60
- 1080i/50; 1080i/59.94; 1080i/60
- 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
- 1080PsF/23.98; 1080PsF/24; 1080PsF/25; 1080PsF/29.97; 1080PsF/30
- 2K DCI video standards: 2Kp/23.98 DCI; 2Kp/24 DCI; 2Kp/25 DCI; 2Kp/29.97 DCI; 2Kp/30 DCI
- SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2084 and SMPTE 2108-1
- Supported SDI metadata: HD RP188 and Closed Captioning CEA-708. HDR metadata supported via SDI.
- Supported HDMI formats:
- 525i/59.94 NTSC; 625i/50 PAL,
- 720p/50; 720p/59.94; 720p/60
- 1080i/50; 1080i/59.94; 1080i/60
- 1080p/23.98; 1080p/24; 1080p/25; 1080p/29.97; 1080p/30; 1080p/50; 1080p/59.94; 1080p/60
- 2Kp/23,98 DCI; 2Kp/24 DCI; 2Kp/25 DCI; 2Kp/29,97 DCI; 2Kp/30 DCI
- 2160p/23.98; 2160p/24; 2160p/25; 2160p/29.97, 2160p/30
- 4Kp/23.98 DCI; 4Kp/24 DCI; 4Kp/25 DCI; 4Kp/29.97 DCI; 4Kp/30 DCI
- Audio sampling: standard television sampling rate of 48 kHz and 24 bit
- Video sampling rate: 4:2:2 YUV
- Colour accuracy: 10 bit
- Colour spaces: Rec. 601, Rec. 709, Rec. 2020
- HDR support: Hybrid Log-Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
- Multirate support: Automatic detection of SD and HD
- Copy protection: No copy-protected HDMI sources can be recorded via the HDMI input. Always check copyright before recording or distributing content
Media:
- Media: 2 SD card slots, 1 USB-C 3.0 expansion port for external recording in SD, HD and 2K DCI
- Media type: UHS-I and UHS-II SD cards
- Storage media format: formats media in ExFAT (Windows/Mac) or HFS+ (Mac) file systems
Supported codecs:
- ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p/60
- DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60 fps
- H.264 SDI 4:2:2 10 bit, H.264 High 4:2:0 8 bit, H.264 Medium 4:2:0 8 bit and H.264 Low 4:2:0 8 bit for all progressive scan formats up to 1080p/60
Controls:

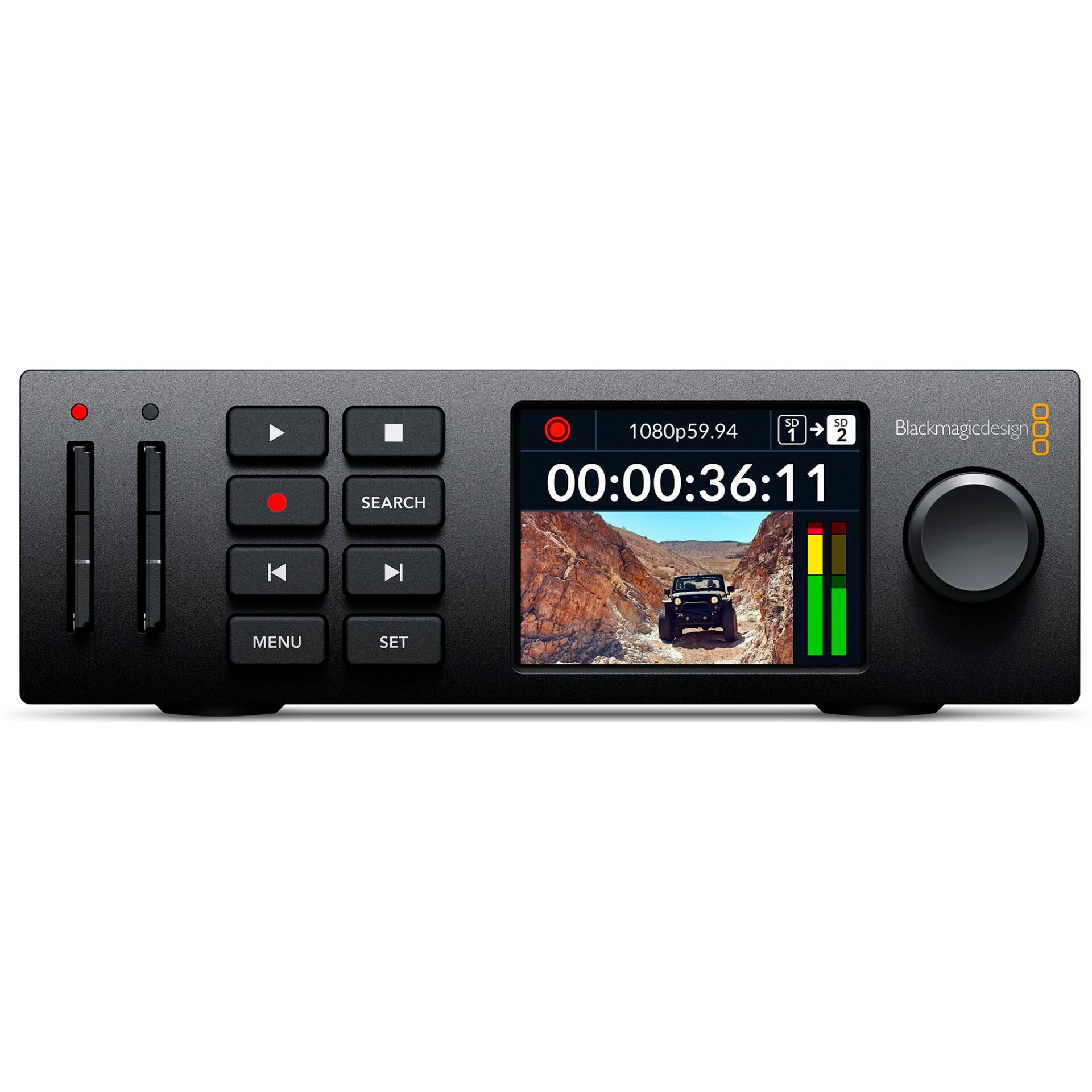

- Built-in control panel: 8 buttons for transport and unit control with seek slider and 2.2" colour display
- External control: RS-422 deck control, SDI start/stop, timecode run. Blackmagic HyperDeck Ethernet Protocol included
- Supports remote file uploads via FTP
Included software:
- Blackmagic OS
- Blackmagic HyperDeck Setup
- Product software upgrades loaded at boot-up or via Blackmagic HyperDeck Setup through the USB port
Operating Systems:
- Mac Catalina 10.15, Mac Big Sur 11.1 or higher
- Windows 10, 64 bit
Screens:
- Built-in 2.2-inch LCD for monitoring video, audio and timecode, and menu settings
- LED indicators above the SD card slots
Power requirements:
- Power supply: 1 integrated AC power supply for 100?240 V, 50/60 Hz; 1x 12V DC power supply with 5.5mm hollow plug for external power supply or battery operation
- Power consumption: maximum 50 watts
Physical specifications:
- 1 height unit, one-third rack width
- Dimensions: 140 x 177 x 44.2 mm
- Weight: 820 g
