- Input Frequency (Hz) - 50 - 60
- Input Voltage (V) - 100 - 240
- Amperage - 12 / 6
Subscribe to our newsletter
Get the latest updates on new products and upcoming sales
- £120.00
- £120.00
- Unit price
- per
iFrame
Availability:
Standard Delivery (3-7 business days – please contact us to check for faster delivery)
Condition:
New

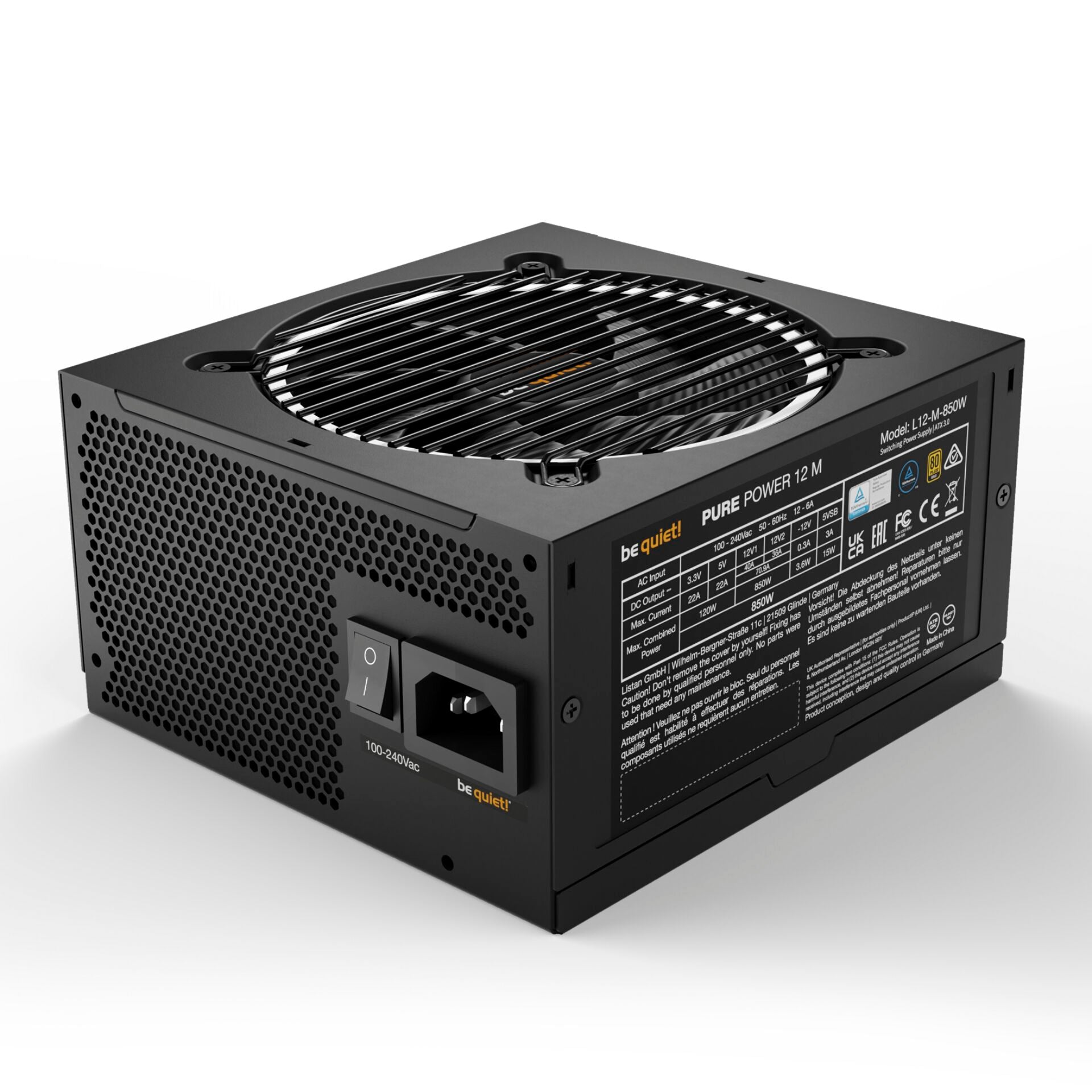

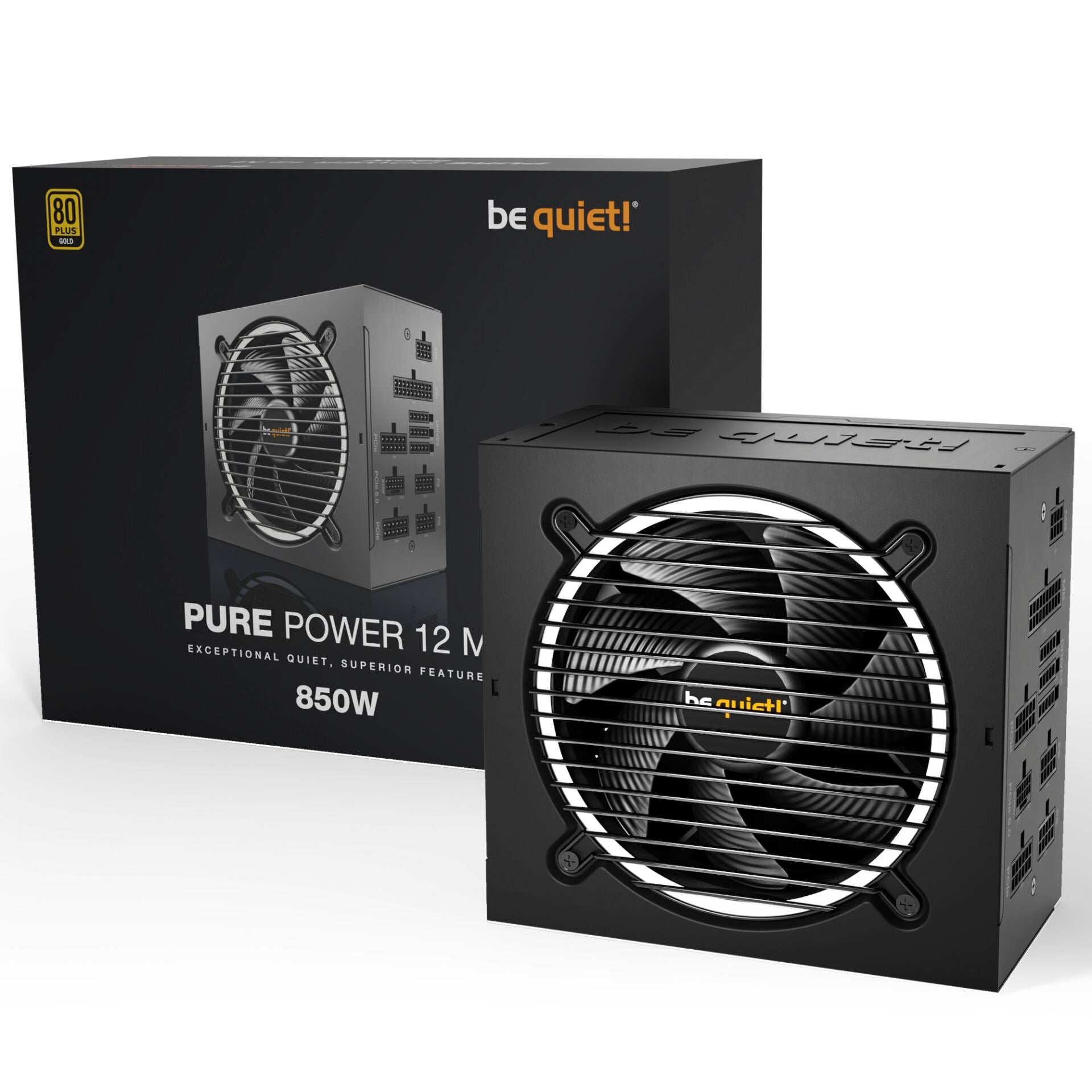

The Pure Power 12 M is an exceptionally quiet ATX 3.1 and PCIe 5.1 compatible power supply, offering the highest reliability with premium features that provide an optimal combination of performance and compatibility.
Features:
- 80 PLUS Gold efficiency (of up to 93.2%).
- ATX 3.1 power supply with full support for PCIe 5.1 GPUs and GPUs with PCIe 6+2 connectors
- Quiet 120mm be quiet! fan
- Good signal stability and strong voltage regulation thanks to LLC technology
- 2 strong 12V cables

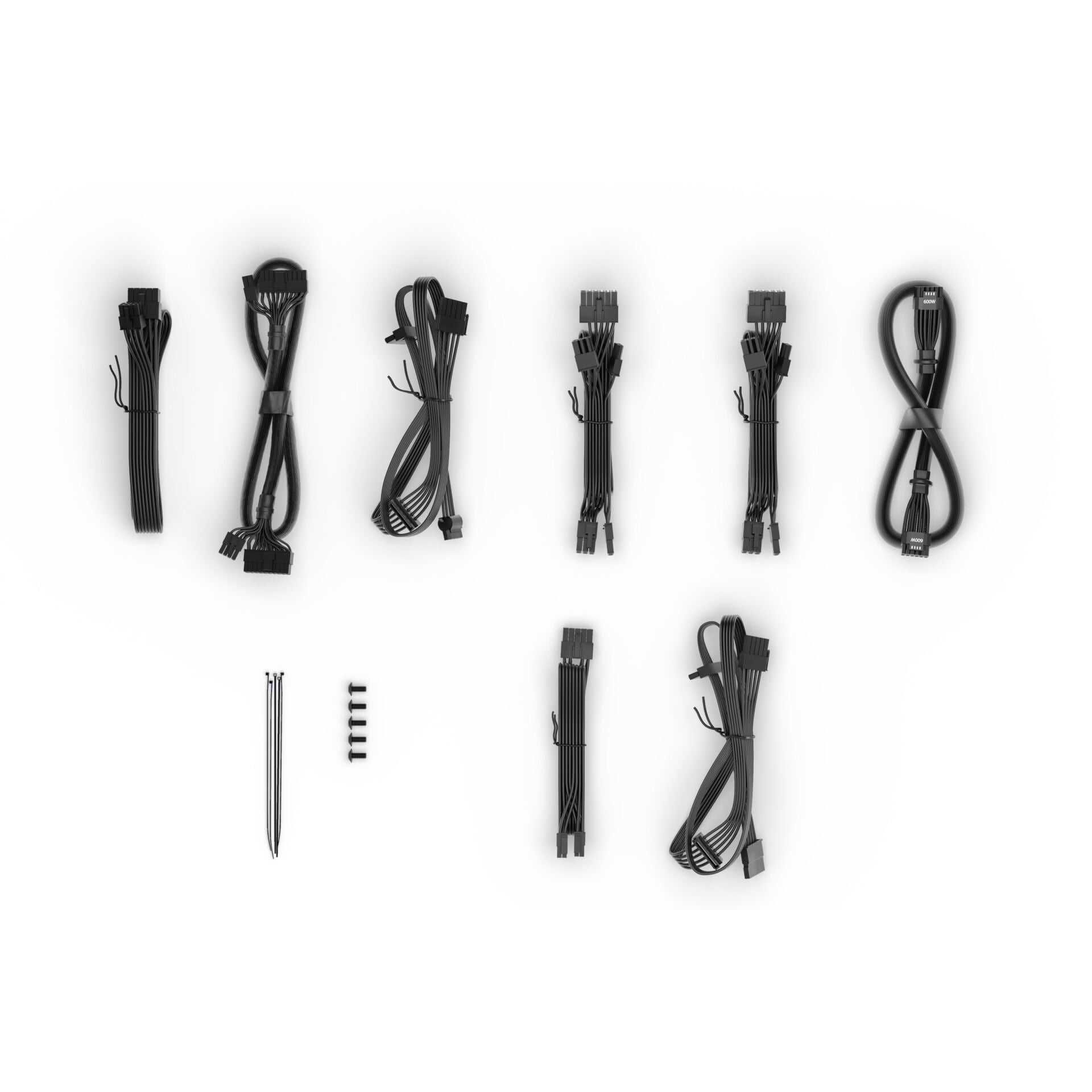

- Modular cables for maximum flexibility
- One PCIe 5.1 12VHPWR connector with 600W and 2 PCIe 6+2 connectors for powerful GPUs
Technical data:
- Continuous power: 850 W
- Peak power: 900 W
- Form factor version 3.1
- Form factor EPS 12V / version 2.92
- Topology: LLC + SR + DC/DC
- Mains voltage: 100 - 240 V
- Mains frequency: 50 - 60 Hz
- Rated current: 10 / 5 A
- Power factor at 100% load: >0.98
- Power consumption in stand-by: <0.1 W
- Average life: >100,000 ((hrs / 25°C)
- Operating range up to: 40 (°C)
Power Supply
Protection Functions
- Short-Circuit Protection (SCP) - Yes
- Overcurrent Protection (OCP) - Yes
- Overvoltage Protection (OVP) - Yes
- Under Voltage Protection - Yes
- Over Temperature Protection - Yes
- Over Power Protection - Yes
Cooling
- Fan (Number) - 1
- Type of Cooling - Active
- Fan Diameter (mm) - 120
- Fan Speed +/- 10% (U/Min) - 2000
Equipment
- PFC Type (Power Factor Correction) - Active PFC
- Power Switch - Yes
- Mean Time Between Failures (MTBF) (h) - 100000
- Cable Management - Fully Modular

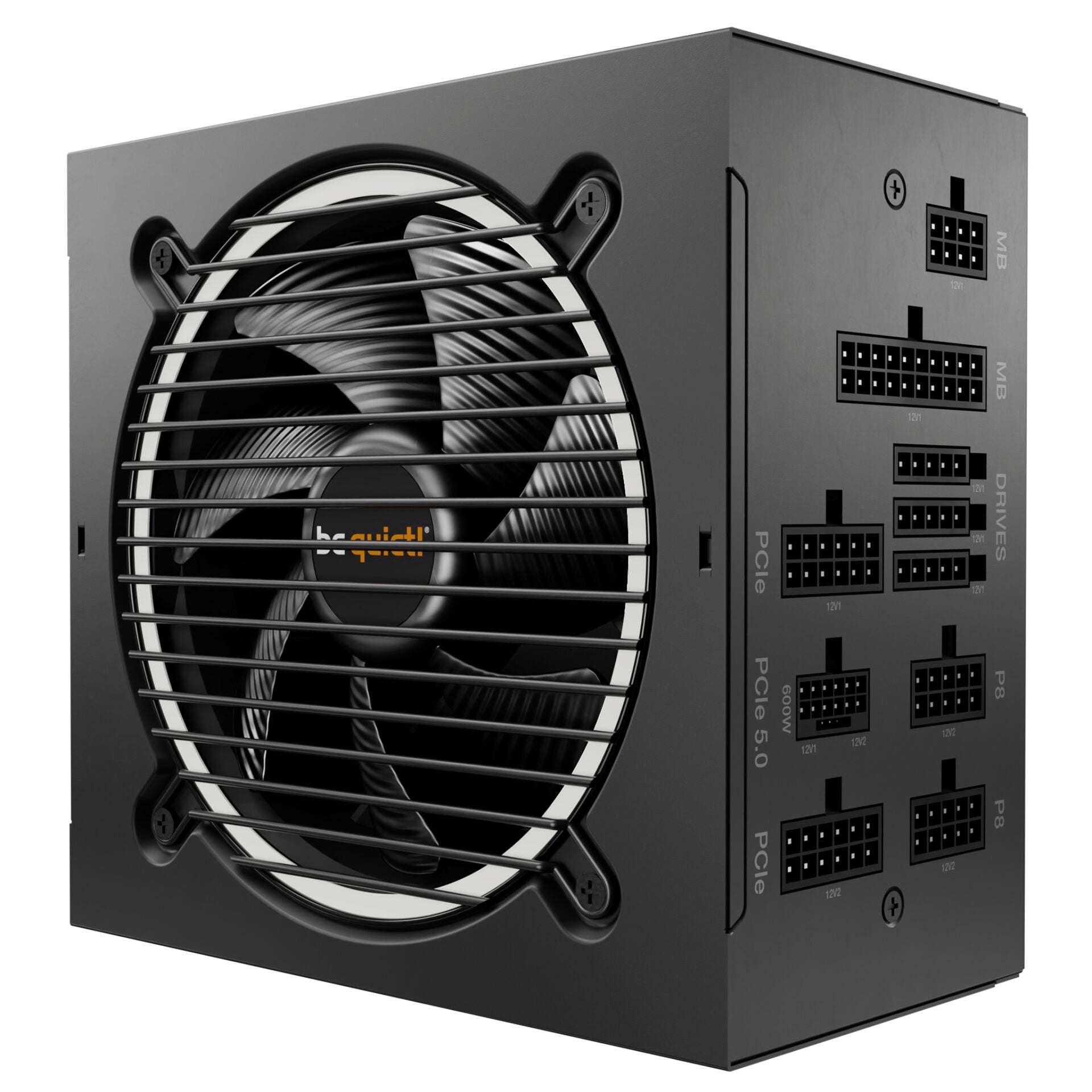

Ports
- ATX-Mainboard - 1x 20+4pin
- ATX12V - 1x8 / 4+4 Pin
- EPS12V - 1x 8pin
- PCIe - 4x 6+2pin
- PCIe 5.0 (12VHPWR) - 1x 600W
- Peripheral P8 - 1x 4+4pin / 1x 8pin
- S-ATA - 4x
- P-ATA / IDE - 2x
Performance
- Power (Watt) - 850
- Top Performance (Watt) - 900
- Form Factor - ATX
- ATX Version - 3.1
- Noise Level in Sleep Mode (dB) - 9.3
- Noise Level at Full Load Mode (dB) - 25.7
- Certification - 80PLUS Gold
- Efficiency at Full Load (%) - 91.2
General
- Colour - Black
- Material - Metal / Plastic
- Width (mm) - 150
- Height (mm) - 86
- Depth (mm) - 160
- Weight (kg) - 1.85
